dear rekan2
saat ini saya pakai Briker ver.Briker 2.0.4 “Luwak” Firmware: 2001170602001.
SIP trunk sudah bisa terkoneksi dengan radio indosat.
jadi topologynya seperti ini:
BRIKER <==>Radio Indosat (bisa terhubung)
namun yang jadi kendala pada saat melakukan calling outgoing tidak bisa.

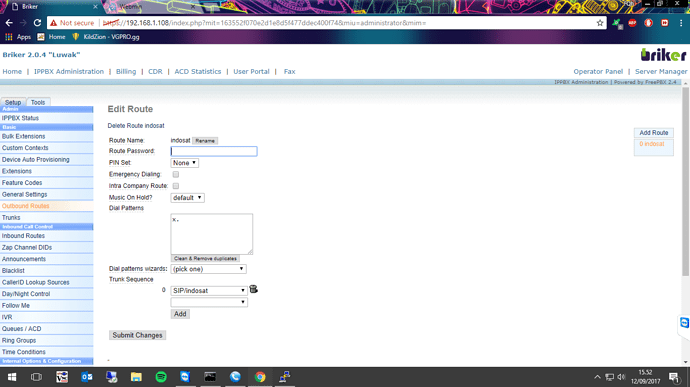

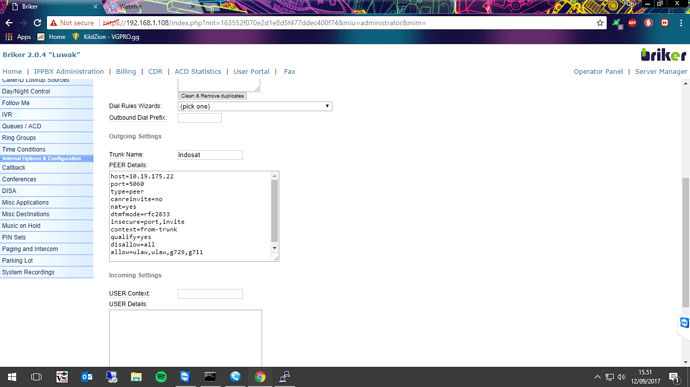

mungkin rekan-rekan bisa bantu, berikut saya lampirkan settingan sip trunk, outbound route dan log nya.
atas bantuanya rekan2 di ucapkan terima kasih
Halo,
Untuk trunk coba buat seperti ini :
host=10.19.175.22
port=5060
type=peer
directmedia=no
nat=force_rport,comedia
dmtfmode=rfc2833
insecure=port,invite
context=from-trunk
qualify=yes
disallow=all
allow=alaw&ulaw
Biasanya untuk outoing call ke PSTN untuk SIP Trunk atau E1 Trunk, diperlukan konfigurasi outbound cid, bisa pada menu extension atau pada menu trunk, untuk mencoba bisa isi pada trunk dahulu pada bagian Outbound Caller ID. Untuk CID nya biasanya adalah alokasi nomor PSTN yang diberikan oleh pihak indosat.
dear pak asoka, terima kasih atas sarannya
saya sudah isi trunk nya sesuai petunjuk bapak, outbound cid di trunk dan di ext. juga saya telah isi tapi belum bisa melakukan panggilan, berikut log nya:
saya dapat update dari pihak indosat bahwa ip 10.19.175.22 sudah di assign berikut lampiranya
Bapak sudah set outbound cid nya ?

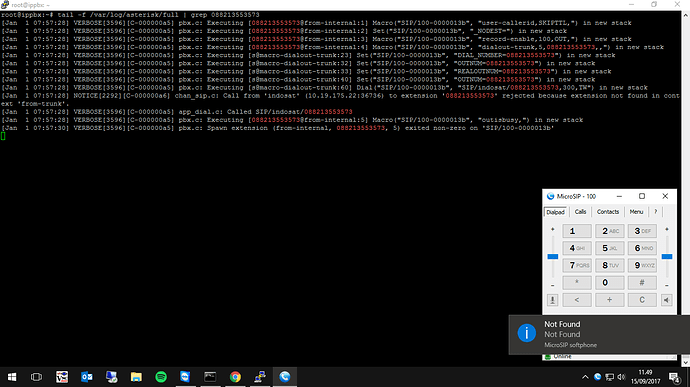

oh yah kirim lognya yang lengkap, coba kirimnya log id C-000000a5 , caranya : cat /var/log/asterisk/full |grep C-000000a5

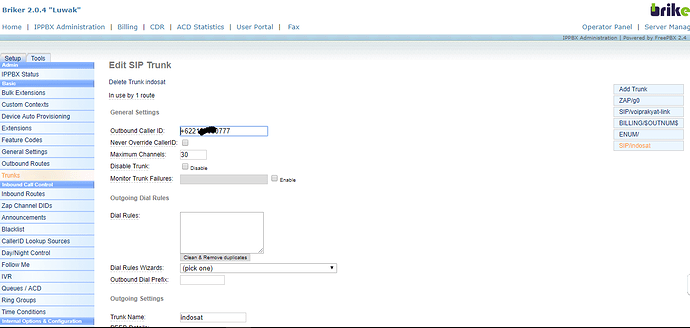

trunk outbound CID

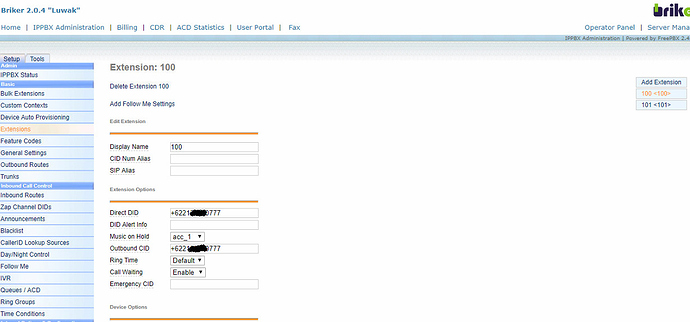

ext. CID
log utk cat /var/log/asterisk/full |grep C-000000a5:
root@ippbx:~# cat /var/log/asterisk/full | grep C-000000a5
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] sip/reqresp_parser.c: Begin: parsing SIP “Supported: replaces, timer”
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] sip/reqresp_parser.c: Found SIP option: -replaces-
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] sip/reqresp_parser.c: Matched SIP option: replaces
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] sip/reqresp_parser.c: Found SIP option: -timer-
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] sip/reqresp_parser.c: Matched SIP option: timer
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Using engine ‘asterisk’ for RTP instance ‘0x7f6100184158’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Allocated port 10972 for RTP instance ‘0x7f6100184158’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Creating ICE session 0.0.0.0:10972 (10972) for RTP instance ‘0x7f6100184158’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: RTP instance ‘0x7f6100184158’ is setup and ready to go
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Using engine ‘asterisk’ for RTP instance ‘0x7f61001a9b98’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Allocated port 14642 for RTP instance ‘0x7f61001a9b98’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Creating ICE session 0.0.0.0:14642 (14642) for RTP instance ‘0x7f61001a9b98’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: RTP instance ‘0x7f61001a9b98’ is setup and ready to go
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Setup RTCP on RTP instance ‘0x7f61001a9b98’
[Jan 1 12:09:40] VERBOSE[1574][C-000000a5] netsock2.c: Using SIP VIDEO TOS bits 136
[Jan 1 12:09:40] VERBOSE[1574][C-000000a5] netsock2.c: Using SIP VIDEO CoS mark 6
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Using engine ‘asterisk’ for RTP instance ‘0x7f6100437398’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Allocated port 15278 for RTP instance ‘0x7f6100437398’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Creating ICE session 0.0.0.0:15278 (15278) for RTP instance ‘0x7f6100437398’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: RTP instance ‘0x7f6100437398’ is setup and ready to go
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Setup RTCP on RTP instance ‘0x7f6100437398’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Setup RTCP on RTP instance ‘0x7f6100184158’
[Jan 1 12:09:40] VERBOSE[1574][C-000000a5] netsock2.c: Using SIP RTP TOS bits 184
[Jan 1 12:09:40] VERBOSE[1574][C-000000a5] netsock2.c: Using SIP RTP CoS mark 5
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Setting NAT on RTP to Off
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Setting NAT on VRTP to Off
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Setting NAT on TRTP to Off
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing session-level SDP v=0… UNSUPPORTED OR FAILED.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing session-level SDP o=root 1391761805 1391761805 IN IP4 10.19.175.22… OK.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing session-level SDP s=Asterisk PBX 13.9.1… UNSUPPORTED OR FAILED.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing session-level SDP c=IN IP4 10.19.175.22… OK.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing session-level SDP b=CT:384… UNSUPPORTED OR FAILED.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing session-level SDP t=0 0… UNSUPPORTED OR FAILED.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Setting tx payload type 8 based on m type on 0x7f60a52912f0
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Setting tx payload type 0 based on m type on 0x7f60a52912f0
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Setting tx payload type 18 based on m type on 0x7f60a52912f0
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Setting tx payload type 101 based on m type on 0x7f60a52912f0
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (audio) SDP a=rtpmap:8 PCMA/8000… OK.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (audio) SDP a=rtpmap:0 PCMU/8000… OK.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (audio) SDP a=rtpmap:18 G729/8000… OK.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (audio) SDP a=fmtp:18 annexb=no… OK.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (audio) SDP a=rtpmap:101 telephone-event/8000… OK.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (audio) SDP a=fmtp:101 0-16… UNSUPPORTED OR FAILED.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (audio) SDP a=maxptime:150… UNSUPPORTED OR FAILED.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (audio) SDP a=sendrecv… OK.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Setting tx payload type 100 based on m type on 0x7f60a5291360
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Setting tx payload type 99 based on m type on 0x7f60a5291360
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Setting tx payload type 98 based on m type on 0x7f60a5291360
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Setting tx payload type 34 based on m type on 0x7f60a5291360
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (video) SDP a=rtpmap:100 VP8/90000… OK.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (video) SDP a=rtcp-fb:* ccm fir… UNSUPPORTED OR FAILED.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (video) SDP a=rtpmap:99 H264/90000… OK.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (video) SDP a=rtpmap:98 h263-1998/90000… OK.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (video) SDP a=rtpmap:34 H263/90000… OK.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Processing media-level (video) SDP a=sendrecv… UNSUPPORTED OR FAILED.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Setting RTCP address on RTP instance ‘0x7f6100184158’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Copying payload 0 (0x7f61001a43d0) from 0x7f60a52912f0 to 0x7f6100184320
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Copying payload 8 (0x7f6100345c20) from 0x7f60a52912f0 to 0x7f6100184320
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Copying payload 18 (0x7f61001a4510) from 0x7f60a52912f0 to 0x7f6100184320
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Copying payload 101 (0x7f61001a4470) from 0x7f60a52912f0 to 0x7f6100184320
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Ignoring duplicate RTCP property on RTP instance ‘0x7f6100184158’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Set role to CONTROLLED (0x7f61001a9b98)
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Set role failed; no ice instance (0x7f61001a9b98)
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Setting RTCP address on RTP instance ‘0x7f61001a9b98’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Copying payload 34 (0x7f6100307150) from 0x7f60a5291360 to 0x7f61001a9d60
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Copying payload 98 (0x7f6100306ff0) from 0x7f60a5291360 to 0x7f61001a9d60
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Copying payload 99 (0x7f6100306e80) from 0x7f60a5291360 to 0x7f61001a9d60
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] rtp_engine.c: Copying payload 100 (0x7f61004997b0) from 0x7f60a5291360 to 0x7f61001a9d60
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] res_rtp_asterisk.c: Setting RTCP address on RTP instance ‘0x7f6100437398’
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: We’re settling with these formats: (alaw|ulaw|vp8|h264|h263p|h263|g729)
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Checking SIP call limits for device
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Updating call counter for incoming call
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Trying to put ‘SIP/2.0 404’ onto UDP socket destined for 10.19.175.22:5060
[Jan 1 12:09:40] NOTICE[1574][C-000000a5] chan_sip.c: Call from ‘indosat’ (10.19.175.22:5060) to extension ‘085219543031’ rejected because extension not found in context ‘from-trunk’.
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Updating call counter for incoming call
[Jan 1 12:09:40] DEBUG[1574][C-000000a5] chan_sip.c: Stopping retransmission on ‘585f7f6c3e3a62f909ac304a44808f31@10.19.175.22:5060’ of Response 102: Match Found
[Jan 1 11:59:50] VERBOSE[1739][C-000000a5] netsock2.c: Using SIP RTP TOS bits 184
[Jan 1 11:59:50] VERBOSE[1739][C-000000a5] netsock2.c: Using SIP RTP CoS mark 5
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [088213553573@from-internal:1] Macro(“SIP/indosat-00000133”, “user-callerid,SKIPTTL,”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-user-callerid:1] NoOp(“SIP/indosat-00000133”, “user-callerid: Unknown Unknown”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-user-callerid:2] Set(“SIP/indosat-00000133”, “AMPUSER=Unknown”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-user-callerid:3] GotoIf(“SIP/indosat-00000133”, “0?report”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-user-callerid:4] ExecIf(“SIP/indosat-00000133”, “1?Set(REALCALLERIDNUM=Unknown)”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-user-callerid:5] NoOp(“SIP/indosat-00000133”, “REALCALLERIDNUM is Unknown”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-user-callerid:6] Set(“SIP/indosat-00000133”, “AMPUSER=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-user-callerid:7] Set(“SIP/indosat-00000133”, “AMPUSERCIDNAME=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-user-callerid:8] GotoIf(“SIP/indosat-00000133”, “1?report”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-user-callerid,s,13)
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-user-callerid:13] NoOp(“SIP/indosat-00000133”, “TTL: ARG1: SKIPTTL”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-user-callerid:14] GotoIf(“SIP/indosat-00000133”, “1?continue”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-user-callerid,s,23)
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-user-callerid:23] NoOp(“SIP/indosat-00000133”, "Using CallerID “Unknown” ") in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [088213553573@from-internal:2] Set(“SIP/indosat-00000133”, “_NODEST=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [088213553573@from-internal:3] Macro(“SIP/indosat-00000133”, “record-enable,OUT,”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-record-enable:1] GotoIf(“SIP/indosat-00000133”, “0?2:4”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-record-enable,s,4)
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-record-enable:4] AGI(“SIP/indosat-00000133”, “recordingcheck,20090101-115950,BrikerIPPBX-1230785990.563”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/recordingcheck
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] res_agi.c: recordingcheck,20090101-115950,BrikerIPPBX-1230785990.563: No AMPUSER db entry for . Not recording
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] res_agi.c: <SIP/indosat-00000133>AGI Script recordingcheck completed, returning 0
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-record-enable:5] NoOp(“SIP/indosat-00000133”, “No recording needed”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [088213553573@from-internal:4] Macro(“SIP/indosat-00000133”, “dialout-trunk,5,088213553573,”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:1] Set(“SIP/indosat-00000133”, “ENTEREDEXT=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:2] NoOp(“SIP/indosat-00000133”, “DEBUG: BT = CH = SIP/indosat-00000133”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:3] Set(“SIP/indosat-00000133”, “BT=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:4] Set(“SIP/indosat-00000133”, “BT=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:5] NoOp(“SIP/indosat-00000133”, “DEBUG: BT = CID = Unknown”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:6] GotoIf(“SIP/indosat-00000133”, “1?authkeylock”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,9)
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:9] Set(“SIP/indosat-00000133”, “KEYLOCK=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:10] GotoIf(“SIP/indosat-00000133”, “0?askpin:pinok”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,13)
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:13] NoOp(“SIP/indosat-00000133”, “OK”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:14] Set(“SIP/indosat-00000133”, “DIAL_TRUNK=5”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:15] Set(“SIP/indosat-00000133”, “ZAP2DAHDI=SIP/indosat”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:16] Set(“SIP/indosat-00000133”, “VAR1=SIP/”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:17] Set(“SIP/indosat-00000133”, “VAR2=indosat”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:18] ExecIf(“SIP/indosat-00000133”, “0?Set(OUT_5=DAHDI/indosat)”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:19] ExecIf(“SIP/indosat-00000133”, “0?Set(OUT_5=DAHDI/indosat)”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:20] ExecIf(“SIP/indosat-00000133”, “0?Set(OUT_5=DAHDI/indosat)”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:21] ExecIf(“SIP/indosat-00000133”, “0?Authenticate()”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:22] GotoIf(“SIP/indosat-00000133”, “0?disabletrunk,1”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:23] Set(“SIP/indosat-00000133”, “DIAL_NUMBER=088213553573”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:24] Set(“SIP/indosat-00000133”, “DIAL_TRUNK_OPTIONS=tTWr”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:25] Set(“SIP/indosat-00000133”, “GROUP()=OUT_5”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:26] GotoIf(“SIP/indosat-00000133”, “0?nomax”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:27] GotoIf(“SIP/indosat-00000133”, “0?chanfull”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:28] GotoIf(“SIP/indosat-00000133”, “0?skipoutcid”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:29] Set(“SIP/indosat-00000133”, “DIAL_TRUNK_OPTIONS=TW”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:30] Macro(“SIP/indosat-00000133”, “outbound-callerid,5”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:1] ExecIf(“SIP/indosat-00000133”, “0?Set(CALLERPRES()=)”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:2] GotoIf(“SIP/indosat-00000133”, “1?start”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-outbound-callerid,s,4)
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:4] NoOp(“SIP/indosat-00000133”, “REALCALLERIDNUM is Unknown”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:5] GotoIf(“SIP/indosat-00000133”, “1?normcid”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-outbound-callerid,s,10)
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:10] Set(“SIP/indosat-00000133”, “USEROUTCID=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:11] Set(“SIP/indosat-00000133”, “EMERGENCYCID=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:12] Set(“SIP/indosat-00000133”, “TRUNKOUTCID=+622130030777”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:13] GotoIf(“SIP/indosat-00000133”, “1?trunkcid”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-outbound-callerid,s,17)
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:17] GotoIf(“SIP/indosat-00000133”, “0?usercid”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:18] Set(“SIP/indosat-00000133”, “CALLERID(all)=+622130030777”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:19] GotoIf(“SIP/indosat-00000133”, “1?report”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-outbound-callerid,s,23)
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:23] NoOp(“SIP/indosat-00000133”, “CallerID set to “” <+622130030777>”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:31] AGI(“SIP/indosat-00000133”, “fixlocalprefix”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/fixlocalprefix
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] res_agi.c: <SIP/indosat-00000133>AGI Script fixlocalprefix completed, returning 0
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:32] Set(“SIP/indosat-00000133”, “OUTNUM=088213553573”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:33] Set(“SIP/indosat-00000133”, “REALOUTNUM=088213553573”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:34] GotoIf(“SIP/indosat-00000133”, “0?askpin1:pinok1”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,39)
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:39] NoOp(“SIP/indosat-00000133”, “OK”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:40] Set(“SIP/indosat-00000133”, “OUTNUM=088213553573”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:41] Set(“SIP/indosat-00000133”, “DEVICENUM=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:42] Set(“SIP/indosat-00000133”, “CIDNAME=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:43] Set(“SIP/indosat-00000133”, “CIDNUM=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:44] ExecIf(“SIP/indosat-00000133”, “1?Set(CIDNUM=)”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:45] Set(“SIP/indosat-00000133”, “CDR(accountcode)=”) in new stack
)[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:46] GotoIf(“SIP/indosat-00000133”, “1?ACCOUNTCODECFOK”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,49)
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:49] ExecIf(“SIP/indosat-00000133”, “1,Set,CDR(accountcode)=”) in new stack
[Jan 1 11:59:50] WARNING[3744][C-000000a5] app_exec.c: Deprecated syntax found. Please upgrade to using ExecIf(?Set(CDR(accountcode)=))
)[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:50] ExecIf(“SIP/indosat-00000133”, “1,Set,CALLERID(name)=”) in new stack
[Jan 1 11:59:50] WARNING[3744][C-000000a5] app_exec.c: Deprecated syntax found. Please upgrade to using ExecIf(?Set(CALLERID(name)=))
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:51] ExecIf(“SIP/indosat-00000133”, “0,Set,CALLERID(number)=”) in new stack
[Jan 1 11:59:50] WARNING[3744][C-000000a5] app_exec.c: Deprecated syntax found. Please upgrade to using ExecIf(?Set(CALLERID(number)=))
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:52] Set(“SIP/indosat-00000133”, “CALLERID(name)=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:53] Set(“SIP/indosat-00000133”, “CALLERID(number)=”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:54] Set(“SIP/indosat-00000133”, “custom=SIP/indosat”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:55] GotoIf(“SIP/indosat-00000133”, “1?gocall”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,57)
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:57] Macro(“SIP/indosat-00000133”, “dialout-trunk-predial-hook,”) in new stack
[Jan 1 11:59:50] WARNING[3744][C-000000a5] app_macro.c: Context ‘macro-dialout-trunk-predial-hook’ for macro ‘dialout-trunk-predial-hook’ lacks ‘s’ extension, priority 1
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:58] GotoIf(“SIP/indosat-00000133”, “0?bypass,1”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:59] GotoIf(“SIP/indosat-00000133”, “0?customtrunk”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:60] Dial(“SIP/indosat-00000133”, “SIP/indosat/088213553573,300,TW”) in new stack
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] netsock2.c: Using SIP RTP TOS bits 184
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] netsock2.c: Using SIP RTP CoS mark 5
[Jan 1 11:59:50] VERBOSE[3744][C-000000a5] app_dial.c: Called SIP/indosat/088213553573
[Jan 1 11:59:54] VERBOSE[1738][C-000000a5] chan_sip.c: Got SIP response 486 “Busy Here” back from 10.19.175.22:5060
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] app_dial.c: SIP/indosat-00000134 is busy
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] app_dial.c: Everyone is busy/congested at this time (1:1/0/0)
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:61] Goto(“SIP/indosat-00000133”, “s-BUSY,1”) in new stack
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s-BUSY,1)
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx.c: Executing [s-BUSY@macro-dialout-trunk:1] NoOp(“SIP/indosat-00000133”, “Dial failed due to trunk reporting BUSY - giving up”) in new stack
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx.c: Executing [s-BUSY@macro-dialout-trunk:2] PlayTones(“SIP/indosat-00000133”, “busy”) in new stack
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx.c: Executing [s-BUSY@macro-dialout-trunk:3] Busy(“SIP/indosat-00000133”, “20”) in new stack
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] app_macro.c: Spawn extension (macro-dialout-trunk, s-BUSY, 3) exited non-zero on ‘SIP/indosat-00000133’ in macro ‘dialout-trunk’
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx.c: Spawn extension (from-internal, 088213553573, 4) exited non-zero on ‘SIP/indosat-00000133’
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx.c: Executing [h@from-internal:1] Macro(“SIP/indosat-00000133”, “hangupcall”) in new stack
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-hangupcall:1] GotoIf(“SIP/indosat-00000133”, “1?skiprg”) in new stack
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-hangupcall,s,4)
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-hangupcall:4] GotoIf(“SIP/indosat-00000133”, “1?skipblkvm”) in new stack
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-hangupcall,s,7)
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-hangupcall:7] GotoIf(“SIP/indosat-00000133”, “1?theend”) in new stack
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx_builtins.c: Goto (macro-hangupcall,s,9)
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx.c: Executing [s@macro-hangupcall:9] Hangup(“SIP/indosat-00000133”, “”) in new stack
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] app_macro.c: Spawn extension (macro-hangupcall, s, 9) exited non-zero on ‘SIP/indosat-00000133’ in macro ‘hangupcall’
[Jan 1 11:59:54] VERBOSE[3744][C-000000a5] pbx.c: Spawn extension (from-internal, h, 1) exited non-zero on ‘SIP/indosat-00000133’
[Jan 1 07:12:42] VERBOSE[1575][C-000000a5] netsock2.c: Using SIP VIDEO TOS bits 136
[Jan 1 07:12:42] VERBOSE[1575][C-000000a5] netsock2.c: Using SIP VIDEO CoS mark 6
[Jan 1 07:12:42] VERBOSE[1575][C-000000a5] netsock2.c: Using SIP RTP TOS bits 184
[Jan 1 07:12:42] VERBOSE[1575][C-000000a5] netsock2.c: Using SIP RTP CoS mark 5
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [088213553573@from-internal:1] Macro(“SIP/622130030777-00000145”, “user-callerid,SKIPTTL,”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-user-callerid:1] NoOp(“SIP/622130030777-00000145”, “user-callerid: Unknown Unknown”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-user-callerid:2] Set(“SIP/622130030777-00000145”, “AMPUSER=Unknown”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-user-callerid:3] GotoIf(“SIP/622130030777-00000145”, “0?report”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-user-callerid:4] ExecIf(“SIP/622130030777-00000145”, “1?Set(REALCALLERIDNUM=Unknown)”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-user-callerid:5] NoOp(“SIP/622130030777-00000145”, “REALCALLERIDNUM is Unknown”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-user-callerid:6] Set(“SIP/622130030777-00000145”, “AMPUSER=”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-user-callerid:7] Set(“SIP/622130030777-00000145”, “AMPUSERCIDNAME=”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-user-callerid:8] GotoIf(“SIP/622130030777-00000145”, “1?report”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-user-callerid,s,13)
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-user-callerid:13] NoOp(“SIP/622130030777-00000145”, “TTL: ARG1: SKIPTTL”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-user-callerid:14] GotoIf(“SIP/622130030777-00000145”, “1?continue”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-user-callerid,s,23)
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-user-callerid:23] NoOp(“SIP/622130030777-00000145”, "Using CallerID “Unknown” ") in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [088213553573@from-internal:2] Set(“SIP/622130030777-00000145”, “_NODEST=”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [088213553573@from-internal:3] Macro(“SIP/622130030777-00000145”, “record-enable,OUT,”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-record-enable:1] GotoIf(“SIP/622130030777-00000145”, “0?2:4”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-record-enable,s,4)
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-record-enable:4] AGI(“SIP/622130030777-00000145”, “recordingcheck,20090101-071242,BrikerIPPBX-1230768762.625”) in new stack
[Jan 1 07:12:42] VERBOSE[2336][C-000000a5] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/recordingcheck
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] res_agi.c: recordingcheck,20090101-071242,BrikerIPPBX-1230768762.625: No AMPUSER db entry for . Not recording
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] res_agi.c: <SIP/622130030777-00000145>AGI Script recordingcheck completed, returning 0
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-record-enable:5] NoOp(“SIP/622130030777-00000145”, “No recording needed”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [088213553573@from-internal:4] Macro(“SIP/622130030777-00000145”, “dialout-trunk,5,088213553573,”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:1] Set(“SIP/622130030777-00000145”, “ENTEREDEXT=”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:2] NoOp(“SIP/622130030777-00000145”, “DEBUG: BT = CH = SIP/622130030777-00000145”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:3] Set(“SIP/622130030777-00000145”, “BT=”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:4] Set(“SIP/622130030777-00000145”, “BT=”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:5] NoOp(“SIP/622130030777-00000145”, “DEBUG: BT = CID = Unknown”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:6] GotoIf(“SIP/622130030777-00000145”, “1?authkeylock”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,9)
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:9] Set(“SIP/622130030777-00000145”, “KEYLOCK=”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:10] GotoIf(“SIP/622130030777-00000145”, “0?askpin:pinok”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,13)
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:13] NoOp(“SIP/622130030777-00000145”, “OK”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:14] Set(“SIP/622130030777-00000145”, “DIAL_TRUNK=5”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:15] Set(“SIP/622130030777-00000145”, “ZAP2DAHDI=SIP/622130030777”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:16] Set(“SIP/622130030777-00000145”, “VAR1=SIP/”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:17] Set(“SIP/622130030777-00000145”, “VAR2=622130030777”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:18] ExecIf(“SIP/622130030777-00000145”, “0?Set(OUT_5=DAHDI/622130030777)”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:19] ExecIf(“SIP/622130030777-00000145”, “0?Set(OUT_5=DAHDI/622130030777)”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:20] ExecIf(“SIP/622130030777-00000145”, “0?Set(OUT_5=DAHDI/622130030777)”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:21] ExecIf(“SIP/622130030777-00000145”, “0?Authenticate()”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:22] GotoIf(“SIP/622130030777-00000145”, “0?disabletrunk,1”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:23] Set(“SIP/622130030777-00000145”, “DIAL_NUMBER=088213553573”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:24] Set(“SIP/622130030777-00000145”, “DIAL_TRUNK_OPTIONS=tTWr”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:25] Set(“SIP/622130030777-00000145”, “GROUP()=OUT_5”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:26] GotoIf(“SIP/622130030777-00000145”, “0?nomax”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:27] GotoIf(“SIP/622130030777-00000145”, “0?chanfull”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:28] GotoIf(“SIP/622130030777-00000145”, “0?skipoutcid”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:29] Set(“SIP/622130030777-00000145”, “DIAL_TRUNK_OPTIONS=TW”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:30] Macro(“SIP/622130030777-00000145”, “outbound-callerid,5”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:1] ExecIf(“SIP/622130030777-00000145”, “0?Set(CALLERPRES()=)”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:2] GotoIf(“SIP/622130030777-00000145”, “1?start”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-outbound-callerid,s,4)
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:4] NoOp(“SIP/622130030777-00000145”, “REALCALLERIDNUM is Unknown”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:5] GotoIf(“SIP/622130030777-00000145”, “1?normcid”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-outbound-callerid,s,10)
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:10] Set(“SIP/622130030777-00000145”, “USEROUTCID=”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:11] Set(“SIP/622130030777-00000145”, “EMERGENCYCID=”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:12] Set(“SIP/622130030777-00000145”, “TRUNKOUTCID=+622130030777”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:13] GotoIf(“SIP/622130030777-00000145”, “1?trunkcid”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-outbound-callerid,s,17)
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:17] GotoIf(“SIP/622130030777-00000145”, “0?usercid”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:18] Set(“SIP/622130030777-00000145”, “CALLERID(all)=+622130030777”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:19] GotoIf(“SIP/622130030777-00000145”, “1?report”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-outbound-callerid,s,23)
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:23] NoOp(“SIP/622130030777-00000145”, “CallerID set to “” <+622130030777>”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:31] AGI(“SIP/622130030777-00000145”, “fixlocalprefix”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/fixlocalprefix
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] res_agi.c: <SIP/622130030777-00000145>AGI Script fixlocalprefix completed, returning 0
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:32] Set(“SIP/622130030777-00000145”, “OUTNUM=088213553573”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:33] Set(“SIP/622130030777-00000145”, “REALOUTNUM=088213553573”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:34] GotoIf(“SIP/622130030777-00000145”, “0?askpin1:pinok1”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,39)
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:39] NoOp(“SIP/622130030777-00000145”, “OK”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:40] Set(“SIP/622130030777-00000145”, “OUTNUM=088213553573”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:41] Set(“SIP/622130030777-00000145”, “DEVICENUM=”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:42] Set(“SIP/622130030777-00000145”, “CIDNAME=”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:43] Set(“SIP/622130030777-00000145”, “CIDNUM=”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:44] ExecIf(“SIP/622130030777-00000145”, “1?Set(CIDNUM=)”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:45] Set(“SIP/622130030777-00000145”, “CDR(accountcode)=”) in new stack
)[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:46] GotoIf(“SIP/622130030777-00000145”, “1?ACCOUNTCODECFOK”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,49)
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:49] ExecIf(“SIP/622130030777-00000145”, “1,Set,CDR(accountcode)=”) in new stack
[Jan 1 07:12:43] WARNING[2336][C-000000a5] app_exec.c: Deprecated syntax found. Please upgrade to using ExecIf(?Set(CDR(accountcode)=))
)[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:50] ExecIf(“SIP/622130030777-00000145”, “1,Set,CALLERID(name)=”) in new stack
[Jan 1 07:12:43] WARNING[2336][C-000000a5] app_exec.c: Deprecated syntax found. Please upgrade to using ExecIf(?Set(CALLERID(name)=))
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:51] ExecIf(“SIP/622130030777-00000145”, “0,Set,CALLERID(number)=”) in new stack
[Jan 1 07:12:43] WARNING[2336][C-000000a5] app_exec.c: Deprecated syntax found. Please upgrade to using ExecIf(?Set(CALLERID(number)=))
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:52] Set(“SIP/622130030777-00000145”, “CALLERID(name)=”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:53] Set(“SIP/622130030777-00000145”, “CALLERID(number)=”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:54] Set(“SIP/622130030777-00000145”, “custom=SIP/622130030777”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:55] GotoIf(“SIP/622130030777-00000145”, “1?gocall”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,57)
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:57] Macro(“SIP/622130030777-00000145”, “dialout-trunk-predial-hook,”) in new stack
[Jan 1 07:12:43] WARNING[2336][C-000000a5] app_macro.c: Context ‘macro-dialout-trunk-predial-hook’ for macro ‘dialout-trunk-predial-hook’ lacks ‘s’ extension, priority 1
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:58] GotoIf(“SIP/622130030777-00000145”, “0?bypass,1”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:59] GotoIf(“SIP/622130030777-00000145”, “0?customtrunk”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:60] Dial(“SIP/622130030777-00000145”, “SIP/622130030777/088213553573,300,TW”) in new stack
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] netsock2.c: Using SIP VIDEO TOS bits 136
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] netsock2.c: Using SIP VIDEO CoS mark 6
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] netsock2.c: Using SIP RTP TOS bits 184
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] netsock2.c: Using SIP RTP CoS mark 5
[Jan 1 07:12:43] VERBOSE[2336][C-000000a5] app_dial.c: Called SIP/622130030777/088213553573
[Jan 1 07:12:48] VERBOSE[1574][C-000000a5] chan_sip.c: Got SIP response 486 “Busy Here” back from 10.19.175.22:5060
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] app_dial.c: SIP/622130030777-00000146 is busy
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] app_dial.c: Everyone is busy/congested at this time (1:1/0/0)
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:61] Goto(“SIP/622130030777-00000145”, “s-BUSY,1”) in new stack
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s-BUSY,1)
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx.c: Executing [s-BUSY@macro-dialout-trunk:1] NoOp(“SIP/622130030777-00000145”, “Dial failed due to trunk reporting BUSY - giving up”) in new stack
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx.c: Executing [s-BUSY@macro-dialout-trunk:2] PlayTones(“SIP/622130030777-00000145”, “busy”) in new stack
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx.c: Executing [s-BUSY@macro-dialout-trunk:3] Busy(“SIP/622130030777-00000145”, “20”) in new stack
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] app_macro.c: Spawn extension (macro-dialout-trunk, s-BUSY, 3) exited non-zero on ‘SIP/622130030777-00000145’ in macro ‘dialout-trunk’
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx.c: Spawn extension (from-internal, 088213553573, 4) exited non-zero on ‘SIP/622130030777-00000145’
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx.c: Executing [h@from-internal:1] Macro(“SIP/622130030777-00000145”, “hangupcall”) in new stack
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-hangupcall:1] GotoIf(“SIP/622130030777-00000145”, “1?skiprg”) in new stack
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-hangupcall,s,4)
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-hangupcall:4] GotoIf(“SIP/622130030777-00000145”, “1?skipblkvm”) in new stack
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-hangupcall,s,7)
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-hangupcall:7] GotoIf(“SIP/622130030777-00000145”, “1?theend”) in new stack
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx_builtins.c: Goto (macro-hangupcall,s,9)
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx.c: Executing [s@macro-hangupcall:9] Hangup(“SIP/622130030777-00000145”, “”) in new stack
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] app_macro.c: Spawn extension (macro-hangupcall, s, 9) exited non-zero on ‘SIP/622130030777-00000145’ in macro ‘hangupcall’
[Jan 1 07:12:48] VERBOSE[2336][C-000000a5] pbx.c: Spawn extension (from-internal, h, 1) exited non-zero on ‘SIP/622130030777-00000145’
[Jan 1 07:57:28] VERBOSE[3594][C-000000a5] netsock2.c: Using SIP VIDEO TOS bits 136
[Jan 1 07:57:28] VERBOSE[3594][C-000000a5] netsock2.c: Using SIP VIDEO CoS mark 6
[Jan 1 07:57:28] VERBOSE[3594][C-000000a5] netsock2.c: Using SIP RTP TOS bits 184
[Jan 1 07:57:28] VERBOSE[3594][C-000000a5] netsock2.c: Using SIP RTP CoS mark 5
[Jan 1 07:57:28] VERBOSE[3594][C-000000a5] netsock2.c: Using UDPTL TOS bits 184
[Jan 1 07:57:28] VERBOSE[3594][C-000000a5] netsock2.c: Using UDPTL CoS mark 5
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [088213553573@from-internal:1] Macro(“SIP/100-0000013b”, “user-callerid,SKIPTTL,”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:1] NoOp(“SIP/100-0000013b”, “user-callerid: device 100”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:2] Set(“SIP/100-0000013b”, “AMPUSER=100”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:3] GotoIf(“SIP/100-0000013b”, “0?report”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:4] ExecIf(“SIP/100-0000013b”, “1?Set(REALCALLERIDNUM=100)”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:5] NoOp(“SIP/100-0000013b”, “REALCALLERIDNUM is 100”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:6] Set(“SIP/100-0000013b”, “AMPUSER=100”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:7] Set(“SIP/100-0000013b”, “AMPUSERCIDNAME=100”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:8] GotoIf(“SIP/100-0000013b”, “0?report”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:9] Set(“SIP/100-0000013b”, “AMPUSERCID=100”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:10] Set(“SIP/100-0000013b”, “CALLERID(all)=“100” <100>”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:11] Set(“SIP/100-0000013b”, “REALCALLERIDNUM=100”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:12] ExecIf(“SIP/100-0000013b”, “0?Set(CHANNEL(language)=)”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:13] NoOp(“SIP/100-0000013b”, “TTL: ARG1: SKIPTTL”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:14] GotoIf(“SIP/100-0000013b”, “1?continue”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-user-callerid,s,23)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-user-callerid:23] NoOp(“SIP/100-0000013b”, “Using CallerID “100” <100>”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [088213553573@from-internal:2] Set(“SIP/100-0000013b”, “_NODEST=”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [088213553573@from-internal:3] Macro(“SIP/100-0000013b”, “record-enable,100,OUT,”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-record-enable:1] GotoIf(“SIP/100-0000013b”, “0?2:4”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-record-enable,s,4)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-record-enable:4] AGI(“SIP/100-0000013b”, “recordingcheck,20090101-075728,BrikerIPPBX-1230771448.621”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/recordingcheck
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] res_agi.c: recordingcheck,20090101-075728,BrikerIPPBX-1230771448.621: Outbound recording not enabled
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] res_agi.c: <SIP/100-0000013b>AGI Script recordingcheck completed, returning 0
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-record-enable:5] NoOp(“SIP/100-0000013b”, “No recording needed”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [088213553573@from-internal:4] Macro(“SIP/100-0000013b”, “dialout-trunk,5,088213553573,”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:1] Set(“SIP/100-0000013b”, “ENTEREDEXT=”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:2] NoOp(“SIP/100-0000013b”, “DEBUG: BT = CH = SIP/100-0000013b”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:3] Set(“SIP/100-0000013b”, “BT=”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:4] Set(“SIP/100-0000013b”, “BT=”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:5] NoOp(“SIP/100-0000013b”, “DEBUG: BT = CID = 100”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:6] GotoIf(“SIP/100-0000013b”, “1?authkeylock”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,9)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:9] Set(“SIP/100-0000013b”, “KEYLOCK=”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:10] GotoIf(“SIP/100-0000013b”, “0?askpin:pinok”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,13)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:13] NoOp(“SIP/100-0000013b”, “OK”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:14] Set(“SIP/100-0000013b”, “DIAL_TRUNK=5”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:15] Set(“SIP/100-0000013b”, “ZAP2DAHDI=SIP/indosat”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:16] Set(“SIP/100-0000013b”, “VAR1=SIP/”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:17] Set(“SIP/100-0000013b”, “VAR2=indosat”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:18] ExecIf(“SIP/100-0000013b”, “0?Set(OUT_5=DAHDI/indosat)”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:19] ExecIf(“SIP/100-0000013b”, “0?Set(OUT_5=DAHDI/indosat)”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:20] ExecIf(“SIP/100-0000013b”, “0?Set(OUT_5=DAHDI/indosat)”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:21] ExecIf(“SIP/100-0000013b”, “0?Authenticate()”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:22] GotoIf(“SIP/100-0000013b”, “0?disabletrunk,1”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:23] Set(“SIP/100-0000013b”, “DIAL_NUMBER=088213553573”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:24] Set(“SIP/100-0000013b”, “DIAL_TRUNK_OPTIONS=tTWr”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:25] Set(“SIP/100-0000013b”, “GROUP()=OUT_5”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:26] GotoIf(“SIP/100-0000013b”, “0?nomax”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:27] GotoIf(“SIP/100-0000013b”, “0?chanfull”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:28] GotoIf(“SIP/100-0000013b”, “0?skipoutcid”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:29] Set(“SIP/100-0000013b”, “DIAL_TRUNK_OPTIONS=TW”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:30] Macro(“SIP/100-0000013b”, “outbound-callerid,5”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:1] ExecIf(“SIP/100-0000013b”, “0?Set(CALLERPRES()=)”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:2] GotoIf(“SIP/100-0000013b”, “1?start”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-outbound-callerid,s,4)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:4] NoOp(“SIP/100-0000013b”, “REALCALLERIDNUM is 100”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:5] GotoIf(“SIP/100-0000013b”, “1?normcid”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-outbound-callerid,s,10)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:10] Set(“SIP/100-0000013b”, “USEROUTCID=+622130030777”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:11] Set(“SIP/100-0000013b”, “EMERGENCYCID=+622130030777”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:12] Set(“SIP/100-0000013b”, “TRUNKOUTCID=+622130030777”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:13] GotoIf(“SIP/100-0000013b”, “1?trunkcid”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-outbound-callerid,s,17)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:17] GotoIf(“SIP/100-0000013b”, “0?usercid”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:18] Set(“SIP/100-0000013b”, “CALLERID(all)=+622130030777”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:19] GotoIf(“SIP/100-0000013b”, “0?report”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:20] Set(“SIP/100-0000013b”, “CALLERID(all)=+622130030777”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:21] GotoIf(“SIP/100-0000013b”, “1?report:hidecid”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-outbound-callerid,s,23)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outbound-callerid:23] NoOp(“SIP/100-0000013b”, “CallerID set to “” <+622130030777>”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:31] AGI(“SIP/100-0000013b”, “fixlocalprefix”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/fixlocalprefix
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] res_agi.c: <SIP/100-0000013b>AGI Script fixlocalprefix completed, returning 0
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:32] Set(“SIP/100-0000013b”, “OUTNUM=088213553573”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:33] Set(“SIP/100-0000013b”, “REALOUTNUM=088213553573”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:34] GotoIf(“SIP/100-0000013b”, “0?askpin1:pinok1”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,39)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:39] NoOp(“SIP/100-0000013b”, “OK”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:40] Set(“SIP/100-0000013b”, “OUTNUM=088213553573”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:41] Set(“SIP/100-0000013b”, “DEVICENUM=100”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:42] Set(“SIP/100-0000013b”, “CIDNAME=”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:43] Set(“SIP/100-0000013b”, “CIDNUM=+622130030777”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:44] ExecIf(“SIP/100-0000013b”, “0?Set(CIDNUM=100)”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:45] Set(“SIP/100-0000013b”, “CDR(accountcode)=100”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:46] GotoIf(“SIP/100-0000013b”, “0?ACCOUNTCODECFOK”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:47] ExecIf(“SIP/100-0000013b”, “0?Set(CDR(accountcode)=+622130030777)”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:48] Goto(“SIP/100-0000013b”, “ACCOUNTCODECFNOTOK”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,54)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:54] Set(“SIP/100-0000013b”, “custom=SIP/indosat”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:55] GotoIf(“SIP/100-0000013b”, “1?gocall”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s,57)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:57] Macro(“SIP/100-0000013b”, “dialout-trunk-predial-hook,”) in new stack
[Jan 1 07:57:28] WARNING[3596][C-000000a5] app_macro.c: Context ‘macro-dialout-trunk-predial-hook’ for macro ‘dialout-trunk-predial-hook’ lacks ‘s’ extension, priority 1
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:58] GotoIf(“SIP/100-0000013b”, “0?bypass,1”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:59] GotoIf(“SIP/100-0000013b”, “0?customtrunk”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:60] Dial(“SIP/100-0000013b”, “SIP/indosat/088213553573,300,TW”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] netsock2.c: Using SIP RTP TOS bits 184
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] netsock2.c: Using SIP RTP CoS mark 5
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] app_dial.c: Called SIP/indosat/088213553573
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] app_dial.c: Everyone is busy/congested at this time (1:0/0/1)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-dialout-trunk:61] Goto(“SIP/100-0000013b”, “s-CHANUNAVAIL,1”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s-CHANUNAVAIL,1)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s-CHANUNAVAIL@macro-dialout-trunk:1] GotoIf(“SIP/100-0000013b”, “1?noreport”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-dialout-trunk,s-CHANUNAVAIL,3)
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s-CHANUNAVAIL@macro-dialout-trunk:3] NoOp(“SIP/100-0000013b”, “TRUNK Dial failed due to CHANUNAVAIL - failing through to other trunks”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [088213553573@from-internal:5] Macro(“SIP/100-0000013b”, “outisbusy,”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outisbusy:1] Playback(“SIP/100-0000013b”, “all-circuits-busy-now,noanswer”) in new stack
[Jan 1 07:57:28] VERBOSE[3596][C-000000a5] file.c: <SIP/100-0000013b> Playing ‘all-circuits-busy-now.slin’ (language ‘en’)
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outisbusy:2] Playback(“SIP/100-0000013b”, “pls-try-call-later,noanswer”) in new stack
[Jan 1 07:57:30] WARNING[3596][C-000000a5] file.c: File pls-try-call-later does not exist in any format
[Jan 1 07:57:30] WARNING[3596][C-000000a5] file.c: Unable to open pls-try-call-later (format (alaw)): No such file or directory
[Jan 1 07:57:30] WARNING[3596][C-000000a5] app_playback.c: Playback failed on SIP/100-0000013b for pls-try-call-later,noanswer
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-outisbusy:3] Macro(“SIP/100-0000013b”, “hangupcall”) in new stack
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-hangupcall:1] GotoIf(“SIP/100-0000013b”, “1?skiprg”) in new stack
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-hangupcall,s,4)
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-hangupcall:4] GotoIf(“SIP/100-0000013b”, “1?skipblkvm”) in new stack
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-hangupcall,s,7)
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-hangupcall:7] GotoIf(“SIP/100-0000013b”, “1?theend”) in new stack
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-hangupcall,s,9)
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-hangupcall:9] Hangup(“SIP/100-0000013b”, “”) in new stack
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] app_macro.c: Spawn extension (macro-hangupcall, s, 9) exited non-zero on ‘SIP/100-0000013b’ in macro ‘hangupcall’
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] app_macro.c: Spawn extension (macro-outisbusy, s, 3) exited non-zero on ‘SIP/100-0000013b’ in macro ‘outisbusy’
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx.c: Spawn extension (from-internal, 088213553573, 5) exited non-zero on ‘SIP/100-0000013b’
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx.c: Executing [h@from-internal:1] Macro(“SIP/100-0000013b”, “hangupcall”) in new stack
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-hangupcall:1] GotoIf(“SIP/100-0000013b”, “1?skiprg”) in new stack
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-hangupcall,s,4)
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-hangupcall:4] GotoIf(“SIP/100-0000013b”, “1?skipblkvm”) in new stack
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-hangupcall,s,7)
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-hangupcall:7] GotoIf(“SIP/100-0000013b”, “1?theend”) in new stack
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx_builtins.c: Goto (macro-hangupcall,s,9)
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx.c: Executing [s@macro-hangupcall:9] Hangup(“SIP/100-0000013b”, “”) in new stack
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] app_macro.c: Spawn extension (macro-hangupcall, s, 9) exited non-zero on ‘SIP/100-0000013b’ in macro ‘hangupcall’
[Jan 1 07:57:30] VERBOSE[3596][C-000000a5] pbx.c: Spawn extension (from-internal, h, 1) exited non-zero on ‘SIP/100-0000013b’
dear all pak asoka dan pak godril
permasalahanya ternyata sudah dapat, saya selama ini tidak perna cek dan recek dengan kabel dari radio indosat ke server getaway kita, jadi ada kabel yang longgar, jadi buat rekan2 semua harus sering2 test ping biar fix semua nya.
lupa cek sip show peers nya
Oh yah pak, itu date time servernya dibenerin.
baik pak saya sudah update itu date nya
