Membatasi panggilan masuk ke extension dengan memasukkan kode tertentu

trilaksono · February 21, 2017, 10:11am

para suhu yang terhormat,

mohon para suhu disini dengan kerendahan hati untuk berbagi ilmunya …

saya ada sedikit permasalahan :
bagaimana caranya membatasi panggilan masuk menggunakan calling card atau a2billing ?

contoh :
incoming call ke extension xxxx
incoming call akan memasukkan kode pin agar dapat terhubung dengan extension xxxx
pin ini akan membatasi panggilan, misalnya :
pin 123456789 = 10 menit
bgaimana cara configure nya ya ???

sebelumnya saya ucapkankan banyak terima kasih

asoka · February 23, 2017, 10:00am

Halo,

kira-kira contohnya seperti ini :

[custom-incoming]
exten = _XXXX,1,NoOp(Custom Incoming Call to Extension XXXX)
same = n(INPUTPIN),Read(PIN,please-enter-the&pin_number)
same = n,GotoIf($[“${PIN}” = “123456789”]?PINOK)
same = n,Playback(pin-invalid)
same = n,Goto(INPUTPIN)
same = n(PINOK),Playback(pin-number-accepted)
same = n(PINOK),Dial(SIP/${EXTEN},60,L(600000:3000:1000))
same = n,Hangup()

Nanti context custom-incoming itu dipakai di SIP User atau di Trunk, tergantung konfigurasi yang mau digunakan.

trilaksono · March 9, 2017, 6:46am

klo warning sisa waktunya gmana y ?

asoka · March 9, 2017, 8:53am

Kalau mau pakai file sendiri, maka buat file rekamannya dulu, misal namanya : call-in-warning-limit.wav.

referensi : https://wiki.asterisk.org/wiki/display/AST/Asterisk+11+Application_Dial

[custom-incoming]
exten = _XXXX,1,NoOp(Custom Incoming Call to Extension XXXX)
same = n(INPUTPIN),Read(PIN,please-enter-the&pin_number)
same = n,GotoIf($["${PIN}" = “123456789”]?PINOK)
same = n,Playback(pin-invalid)
same = n,Goto(INPUTPIN)
same = n(PINOK),Playback(pin-number-accepted)
same = n,Set(LIMIT_WARNING_FILE=call-in-warning-limit)
same = n,Dial(SIP/${EXTEN},60,L(600000:3000:1000))
same = n,Hangup()

trilaksono · March 16, 2017, 4:04am

dear suhu yang terhormat …

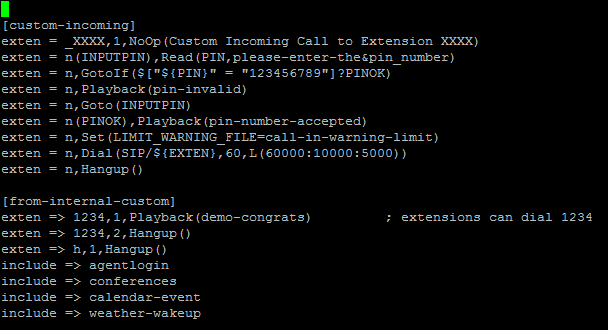

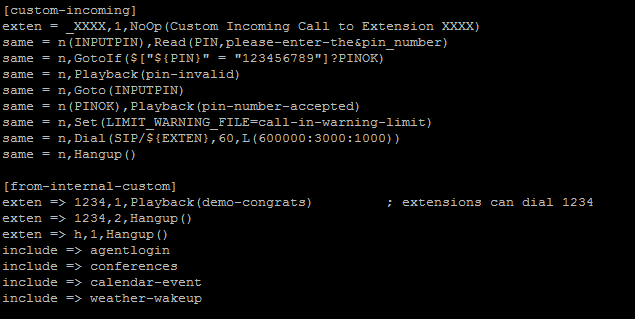

utk Custom-Incoming saya masukkan ke vi /ect/asterisk/extensions_custom.conf di asterisk nya …
sedangkan untuk disisi elastix nya saya harus configure dimana ya ?

terima kasih sebelumnya …

asoka · March 16, 2017, 7:53am

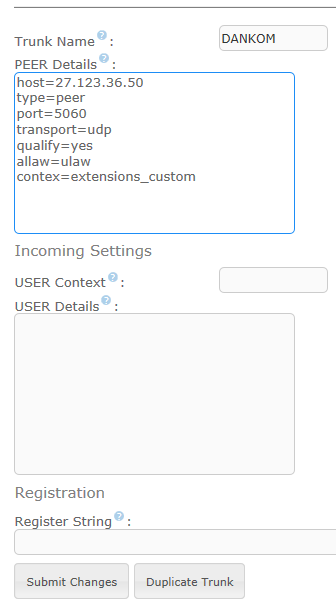

langsung saja pakai pada konfigurasi trunk yang digunakan, context=custom-incoming

trilaksono · March 16, 2017, 8:49am

dear suhu …

saran diatas sudah saya lakukan …
replay nya adalah setelah saya dial exten : "sorry you are having problem … goodbye …"
setelah itu langsung cut off … tanpa diminta untuk memasukkan pin …

asoka · March 16, 2017, 9:25am

kalo pakai context itu berarti dialnya harus 4 digit saja, selain itu tidak bisa.

Lihat pada bagian :

exten = _XXXX,1,NoOp(Custom Incoming Call to Extension XXXX)

Oh yah coba kirimkan log full nya juga yah, biar mempermudah memberikan solusi

trilaksono · March 17, 2017, 12:50am

dear suhu …

exten yang saya create saat ini memang 4 digit saja

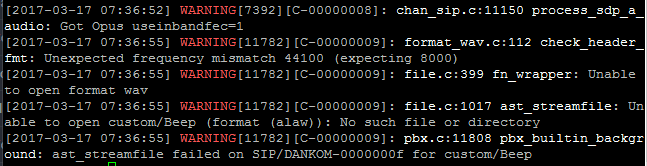

berikut saya lampirkan log dan configure nya
semoga bisa diperjelas …

mohon bantuan dari suhu … terima kasih banyak suhu …

asoka · March 17, 2017, 8:02am

Perhatikan lagi postingan yang saya buat sebelumnya. Lalu cek dengan yang sudah ditulis di asterisk anda

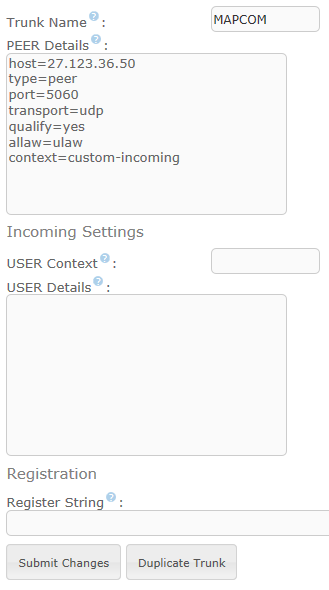

Pada bagian konfigurasi trunk harusnya context=custom-incoming , bukan contex juga nulisnya, kurang 1 huruf saja bisa tidak jalan, jadi harap diperhatikan dengan baik.

Log full kalo dikirim ke sini kirim yang lengkap jangan setengah2 seperti itu, nanti yang mau analisanya kesulitan.

trilaksono · March 17, 2017, 9:49am

mohon maaf teramat sangat suhu …

karena kekurang telitian saya …
berikut yang sudah saya coba koreksi …
