Kayaknya ketika keluar dari Briker dengan prefix 9, angka 9 ini akan distrip oleh Briker, lalu begitu masuk ke PBX Analog, nomernya ini harus diappend 9 lagi.
Jadi kalo ndak salah dial patternnya harusnya: 9+9|.
CMIIW
Hi,
Terima kasih untuk responnya.

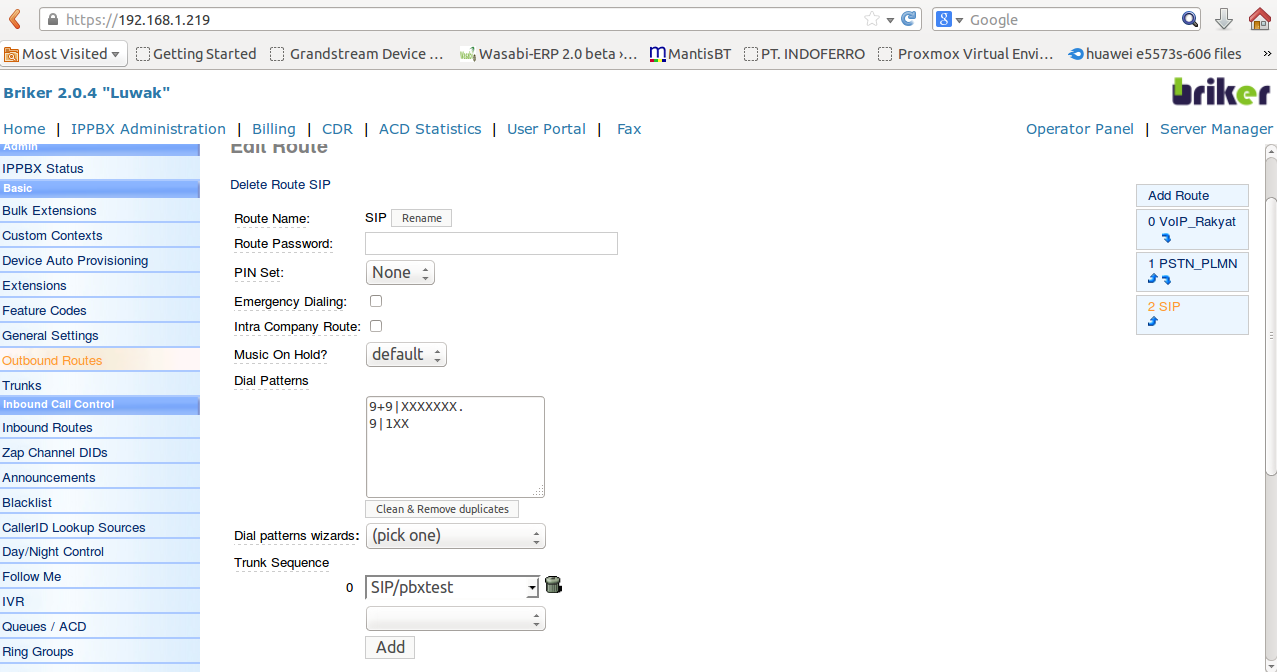

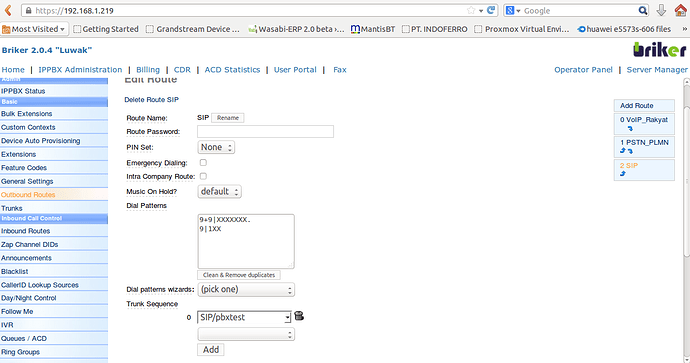

Saya sudah coba untuk setting seperti yang disarankan, pada beriker ada log seperti ini :
[Apr 17 13:11:50] VERBOSE[1437][C-00000011] netsock2.c: Using SIP VIDEO TOS bits 136
[Apr 17 13:11:50] VERBOSE[1437][C-00000011] netsock2.c: Using SIP VIDEO CoS mark 6
[Apr 17 13:11:50] VERBOSE[1437][C-00000011] netsock2.c: Using SIP RTP TOS bits 184
[Apr 17 13:11:50] VERBOSE[1437][C-00000011] netsock2.c: Using SIP RTP CoS mark 5
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [73884386@from-internal:1] Macro(“SIP/1102-0000001c”, “user-callerid,SKIPTTL,”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:1] NoOp(“SIP/1102-0000001c”, “user-callerid: device 1102”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:2] Set(“SIP/1102-0000001c”, “AMPUSER=1102”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:3] GotoIf(“SIP/1102-0000001c”, “0?report”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:4] ExecIf(“SIP/1102-0000001c”, “1?Set(REALCALLERIDNUM=1102)”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:5] NoOp(“SIP/1102-0000001c”, “REALCALLERIDNUM is 1102”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:6] Set(“SIP/1102-0000001c”, “AMPUSER=1102”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:7] Set(“SIP/1102-0000001c”, “AMPUSERCIDNAME=IT JKT”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:8] GotoIf(“SIP/1102-0000001c”, “0?report”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:9] Set(“SIP/1102-0000001c”, “AMPUSERCID=1102”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:10] Set(“SIP/1102-0000001c”, “CALLERID(all)=“IT JKT” <1102>”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:11] Set(“SIP/1102-0000001c”, “REALCALLERIDNUM=1102”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:12] ExecIf(“SIP/1102-0000001c”, “0?Set(CHANNEL(language)=)”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:13] NoOp(“SIP/1102-0000001c”, “TTL: ARG1: SKIPTTL”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:14] GotoIf(“SIP/1102-0000001c”, “1?continue”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-user-callerid,s,23)
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-user-callerid:23] NoOp(“SIP/1102-0000001c”, “Using CallerID “IT JKT” <1102>”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [73884386@from-internal:2] Set(“SIP/1102-0000001c”, “_NODEST=”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [73884386@from-internal:3] Macro(“SIP/1102-0000001c”, “record-enable,1102,OUT,”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-record-enable:1] GotoIf(“SIP/1102-0000001c”, “0?2:4”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-record-enable,s,4)
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-record-enable:4] AGI(“SIP/1102-0000001c”, “recordingcheck,20170417-131150,BrikerIPPBX-1492409510.56”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/recordingcheck
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] res_agi.c: recordingcheck,20170417-131150,BrikerIPPBX-1492409510.56: Outbound recording not enabled
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] res_agi.c: <SIP/1102-0000001c>AGI Script recordingcheck completed, returning 0
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-record-enable:5] NoOp(“SIP/1102-0000001c”, “No recording needed”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [73884386@from-internal:4] Macro(“SIP/1102-0000001c”, “dialout-trunk,5,73884386,”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:1] Set(“SIP/1102-0000001c”, “ENTEREDEXT=”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:2] NoOp(“SIP/1102-0000001c”, “DEBUG: BT = CH = SIP/1102-0000001c”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:3] Set(“SIP/1102-0000001c”, “BT=”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:4] Set(“SIP/1102-0000001c”, “BT=”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:5] NoOp(“SIP/1102-0000001c”, “DEBUG: BT = CID = 1102”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:6] GotoIf(“SIP/1102-0000001c”, “1?authkeylock”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-dialout-trunk,s,9)
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:9] Set(“SIP/1102-0000001c”, “KEYLOCK=”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:10] GotoIf(“SIP/1102-0000001c”, “0?askpin:pinok”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-dialout-trunk,s,13)
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:13] NoOp(“SIP/1102-0000001c”, “OK”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:14] Set(“SIP/1102-0000001c”, “DIAL_TRUNK=5”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:15] Set(“SIP/1102-0000001c”, “ZAP2DAHDI=SIP/pbxtest”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:16] Set(“SIP/1102-0000001c”, “VAR1=SIP/”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:17] Set(“SIP/1102-0000001c”, “VAR2=pbxtest”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:18] ExecIf(“SIP/1102-0000001c”, “0?Set(OUT_5=DAHDI/pbxtest)”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:19] ExecIf(“SIP/1102-0000001c”, “0?Set(OUT_5=DAHDI/pbxtest)”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:20] ExecIf(“SIP/1102-0000001c”, “0?Set(OUT_5=DAHDI/pbxtest)”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:21] ExecIf(“SIP/1102-0000001c”, “0?Authenticate()”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:22] GotoIf(“SIP/1102-0000001c”, “0?disabletrunk,1”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:23] Set(“SIP/1102-0000001c”, “DIAL_NUMBER=73884386”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:24] Set(“SIP/1102-0000001c”, “DIAL_TRUNK_OPTIONS=tTWr”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:25] Set(“SIP/1102-0000001c”, “GROUP()=OUT_5”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:26] GotoIf(“SIP/1102-0000001c”, “1?nomax”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-dialout-trunk,s,28)
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:28] GotoIf(“SIP/1102-0000001c”, “0?skipoutcid”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:29] Set(“SIP/1102-0000001c”, “DIAL_TRUNK_OPTIONS=TW”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:30] Macro(“SIP/1102-0000001c”, “outbound-callerid,5”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-outbound-callerid:1] ExecIf(“SIP/1102-0000001c”, “0?Set(CALLERPRES()=)”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-outbound-callerid:2] GotoIf(“SIP/1102-0000001c”, “1?start”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-outbound-callerid,s,4)
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-outbound-callerid:4] NoOp(“SIP/1102-0000001c”, “REALCALLERIDNUM is 1102”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-outbound-callerid:5] GotoIf(“SIP/1102-0000001c”, “1?normcid”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-outbound-callerid,s,10)
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-outbound-callerid:10] Set(“SIP/1102-0000001c”, “USEROUTCID=”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-outbound-callerid:11] Set(“SIP/1102-0000001c”, “EMERGENCYCID=”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-outbound-callerid:12] Set(“SIP/1102-0000001c”, “TRUNKOUTCID=”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-outbound-callerid:13] GotoIf(“SIP/1102-0000001c”, “1?trunkcid”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-outbound-callerid,s,17)
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-outbound-callerid:17] GotoIf(“SIP/1102-0000001c”, “1?usercid”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-outbound-callerid,s,19)
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-outbound-callerid:19] GotoIf(“SIP/1102-0000001c”, “1?report”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-outbound-callerid,s,23)
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-outbound-callerid:23] NoOp(“SIP/1102-0000001c”, “CallerID set to “IT JKT” <1102>”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:31] AGI(“SIP/1102-0000001c”, “fixlocalprefix”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/fixlocalprefix
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] res_agi.c: <SIP/1102-0000001c>AGI Script fixlocalprefix completed, returning 0
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:32] Set(“SIP/1102-0000001c”, “OUTNUM=73884386”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:33] Set(“SIP/1102-0000001c”, “REALOUTNUM=73884386”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:34] GotoIf(“SIP/1102-0000001c”, “0?askpin1:pinok1”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-dialout-trunk,s,39)
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:39] NoOp(“SIP/1102-0000001c”, “OK”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:40] Set(“SIP/1102-0000001c”, “OUTNUM=73884386”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:41] Set(“SIP/1102-0000001c”, “DEVICENUM=1102”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:42] Set(“SIP/1102-0000001c”, “CIDNAME=”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:43] Set(“SIP/1102-0000001c”, “CIDNUM=”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:44] ExecIf(“SIP/1102-0000001c”, “1?Set(CIDNUM=1102)”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:45] Set(“SIP/1102-0000001c”, “CDR(accountcode)=1102”) in new stack
[Apr 17 13:11:50] WARNING[1404] func_cdr.c: Using the CDR function to set ‘accountcode’ is deprecated. Please use the CHANNEL function instead.
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:46] GotoIf(“SIP/1102-0000001c”, “0?ACCOUNTCODECFOK”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:47] ExecIf(“SIP/1102-0000001c”, “0?Set(CDR(accountcode)=1102)”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:48] Goto(“SIP/1102-0000001c”, “ACCOUNTCODECFNOTOK”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-dialout-trunk,s,54)
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:54] Set(“SIP/1102-0000001c”, “custom=SIP/pbxtest”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:55] GotoIf(“SIP/1102-0000001c”, “1?gocall”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-dialout-trunk,s,57)
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:57] Macro(“SIP/1102-0000001c”, “dialout-trunk-predial-hook,”) in new stack
[Apr 17 13:11:50] WARNING[2274][C-00000011] app_macro.c: Context ‘macro-dialout-trunk-predial-hook’ for macro ‘dialout-trunk-predial-hook’ lacks ‘s’ extension, priority 1
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:58] GotoIf(“SIP/1102-0000001c”, “0?bypass,1”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:59] GotoIf(“SIP/1102-0000001c”, “0?customtrunk”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-dialout-trunk:60] Dial(“SIP/1102-0000001c”, “SIP/pbxtest/73884386,300,TW”) in new stack
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] netsock2.c: Using SIP RTP TOS bits 184
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] netsock2.c: Using SIP RTP CoS mark 5
[Apr 17 13:11:50] VERBOSE[2274][C-00000011] app_dial.c: Called SIP/pbxtest/73884386
[Apr 17 13:11:53] VERBOSE[2274][C-00000011] app_dial.c: SIP/pbxtest-0000001d is ringing
[Apr 17 13:11:53] VERBOSE[2274][C-00000011] app_dial.c: SIP/pbxtest-0000001d answered SIP/1102-0000001c
[Apr 17 13:11:53] VERBOSE[2278][C-00000011] bridge_channel.c: Channel SIP/pbxtest-0000001d joined ‘simple_bridge’ basic-bridge <750aa10c-105b-46c4-883d-9f33ba8007e1>
[Apr 17 13:11:53] VERBOSE[2274][C-00000011] bridge_channel.c: Channel SIP/1102-0000001c joined ‘simple_bridge’ basic-bridge <750aa10c-105b-46c4-883d-9f33ba8007e1>
[Apr 17 13:12:06] VERBOSE[2274][C-00000011] bridge_channel.c: Channel SIP/1102-0000001c left ‘simple_bridge’ basic-bridge <750aa10c-105b-46c4-883d-9f33ba8007e1>
[Apr 17 13:12:06] VERBOSE[2274][C-00000011] app_macro.c: Spawn extension (macro-dialout-trunk, s, 60) exited non-zero on ‘SIP/1102-0000001c’ in macro ‘dialout-trunk’
[Apr 17 13:12:06] VERBOSE[2274][C-00000011] pbx.c: Spawn extension (from-internal, 73884386, 4) exited non-zero on ‘SIP/1102-0000001c’
[Apr 17 13:12:06] VERBOSE[2274][C-00000011] pbx.c: Executing [h@from-internal:1] Macro(“SIP/1102-0000001c”, “hangupcall”) in new stack
[Apr 17 13:12:06] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-hangupcall:1] GotoIf(“SIP/1102-0000001c”, “1?skiprg”) in new stack
[Apr 17 13:12:06] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-hangupcall,s,4)
[Apr 17 13:12:06] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-hangupcall:4] GotoIf(“SIP/1102-0000001c”, “1?skipblkvm”) in new stack
[Apr 17 13:12:06] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-hangupcall,s,7)
[Apr 17 13:12:06] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-hangupcall:7] GotoIf(“SIP/1102-0000001c”, “1?theend”) in new stack
[Apr 17 13:12:06] VERBOSE[2274][C-00000011] pbx_builtins.c: Goto (macro-hangupcall,s,9)
[Apr 17 13:12:06] VERBOSE[2274][C-00000011] pbx.c: Executing [s@macro-hangupcall:9] Hangup(“SIP/1102-0000001c”, “”) in new stack
[Apr 17 13:12:06] VERBOSE[2274][C-00000011] app_macro.c: Spawn extension (macro-hangupcall, s, 9) exited non-zero on ‘SIP/1102-0000001c’ in macro ‘hangupcall’
[Apr 17 13:12:06] VERBOSE[2274][C-00000011] pbx.c: Spawn extension (from-internal, h, 1) exited non-zero on ‘SIP/1102-0000001c’
[Apr 17 13:12:06] VERBOSE[2278][C-00000011] bridge_channel.c: Channel SIP/pbxtest-0000001d left ‘simple_bridge’ basic-bridge <750aa10c-105b-46c4-883d-9f33ba8007e1>
Apa masih ada yang kurang pada setting brikernya ya?
Mohon advicenya kembali.
Terima kasih
ini kok call keluar masih lewat from-internal ya. Kalau sesuai dengan setting trunk di postingan atas2, harusnya dia @from-trunk.
Coba mas dial pattern di atas dibersihkan dulu… lalu agak diberikan pattern yang panjang misal di situ nomer yang dituju minimal 8 digit. Coba dial pattern diisi 9+9|XXXXXXX. (perhatikan tanda titik). Lalu Untuk ke ekstensi2 PBX analog dikasih 9|1XX
Dear godril
saya sudah coba menggunakan cara yang disarankan, tetapi jadi tidak bisa telepon sama sekali baik yang di extention analog pabx ataupun keluar pstn lain
-

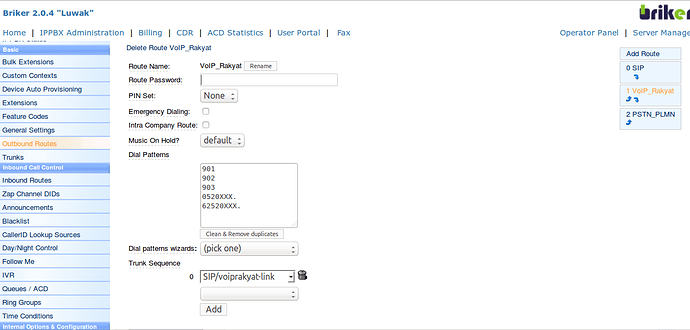

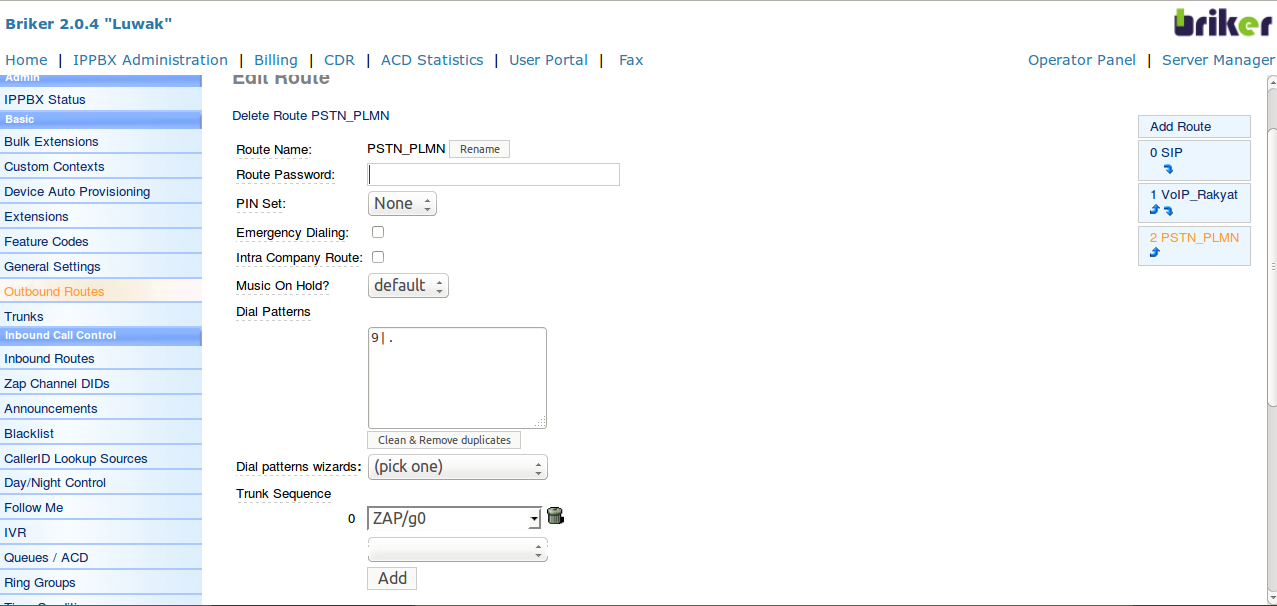

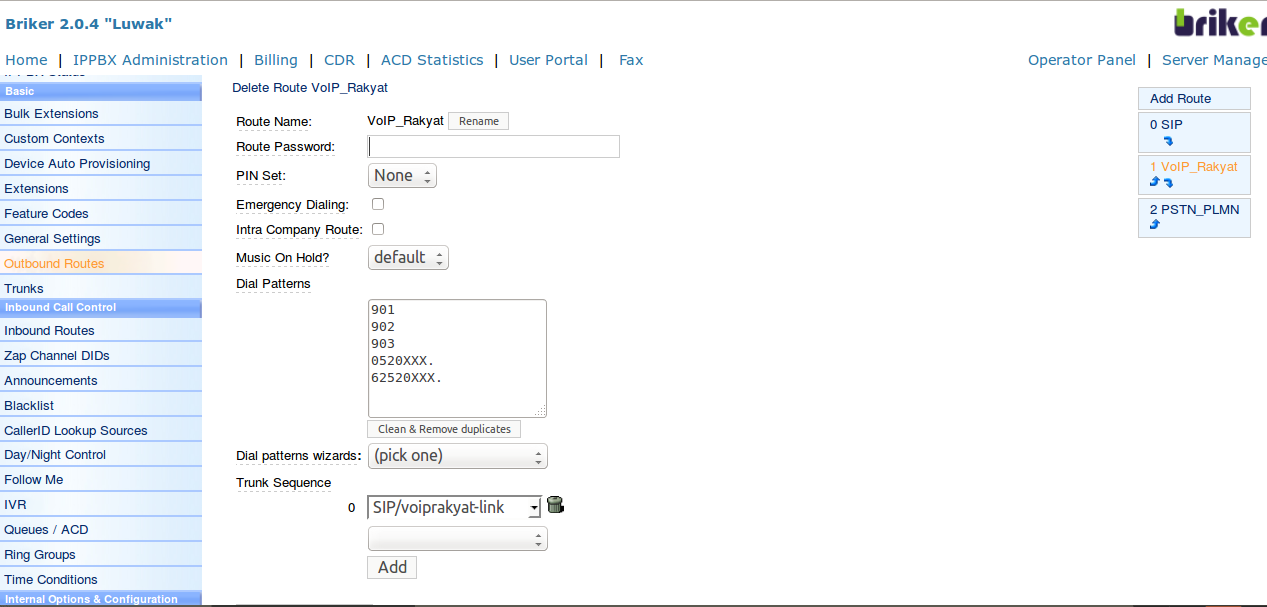

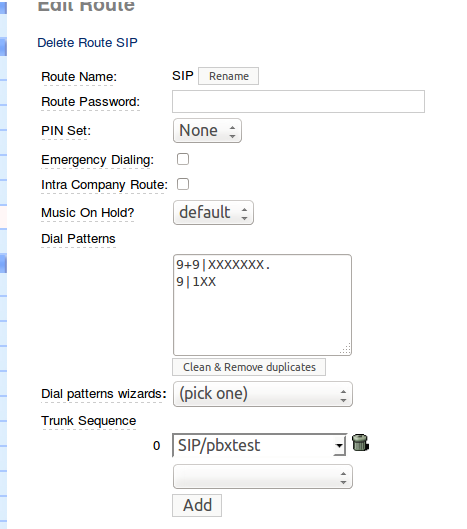

setting outbound
-
log pada briker
root@ippbx:/home/support# tail -f /var/log/asterisk/full
[May 2 16:34:21] VERBOSE[1559][C-00000000] pbx.c: Executing [h@from-internal:1] Macro(“SIP/1102-00000000”, “hangupcall”) in new stack
[May 2 16:34:21] VERBOSE[1559][C-00000000] pbx.c: Executing [s@macro-hangupcall :1] GotoIf(“SIP/1102-00000000”, “1?skiprg”) in new stack
[May 2 16:34:21] VERBOSE[1559][C-00000000] pbx_builtins.c: Goto (macro-hangupca ll,s,4)
[May 2 16:34:21] VERBOSE[1559][C-00000000] pbx.c: Executing [s@macro-hangupcall :4] GotoIf(“SIP/1102-00000000”, “1?skipblkvm”) in new stack
[May 2 16:34:21] VERBOSE[1559][C-00000000] pbx_builtins.c: Goto (macro-hangupca ll,s,7)
[May 2 16:34:21] VERBOSE[1559][C-00000000] pbx.c: Executing [s@macro-hangupcall :7] GotoIf(“SIP/1102-00000000”, “1?theend”) in new stack
[May 2 16:34:21] VERBOSE[1559][C-00000000] pbx_builtins.c: Goto (macro-hangupca ll,s,9)
[May 2 16:34:21] VERBOSE[1559][C-00000000] pbx.c: Executing [s@macro-hangupcall :9] Hangup(“SIP/1102-00000000”, “”) in new stack
[May 2 16:34:21] VERBOSE[1559][C-00000000] app_macro.c: Spawn extension (macro- hangupcall, s, 9) exited non-zero on ‘SIP/1102-00000000’ in macro ‘hangupcall’
[May 2 16:34:21] VERBOSE[1559][C-00000000] pbx.c: Spawn extension (from-interna l, h, 1) exited non-zero on ‘SIP/1102-00000000’
konfigurasi dimana ya yang masih salah?
Mohon pencerahannya kembali
mas, coba call ke nomer hp atau PSTN, lalu lognya tolong paste yang baris nyantumin nomer telepon yang mas dial.
Dear Godril,
saya sudah mencoba setting seperti yang dijelaskan sebelumnya
Saat saya mencoba telepon ke sesama extention yang ada di pabx analog ada error seperti ini
[May 30 13:57:22] VERBOSE[1441][C-00000000] netsock2.c: Using SIP VIDEO TOS bits 136
[May 30 13:57:22] VERBOSE[1441][C-00000000] netsock2.c: Using SIP VIDEO CoS mark 6
[May 30 13:57:22] VERBOSE[1441][C-00000000] netsock2.c: Using SIP RTP TOS bits 184
[May 30 13:57:22] VERBOSE[1441][C-00000000] netsock2.c: Using SIP RTP CoS mark 5
[May 30 13:57:22] VERBOSE[1593][C-00000000] pbx.c: Executing [116@from-internal:1] ResetCDR(“SIP/1102-00000000”, “”) in new stack
[May 30 13:57:22] VERBOSE[1593][C-00000000] pbx.c: Executing [116@from-internal:2] NoCDR(“SIP/1102-00000000”, “”) in new stack
[May 30 13:57:22] VERBOSE[1593][C-00000000] pbx.c: Executing [116@from-internal:3] Wait(“SIP/1102-00000000”, “1”) in new stack
[May 30 13:57:23] VERBOSE[1593][C-00000000] pbx.c: Executing [116@from-internal:4] Playback(“SIP/1102-00000000”, “silence/1&cannot-complete-as-dialed&check-number-dial-again,noanswer”) in new stack
[May 30 13:57:23] VERBOSE[1593][C-00000000] file.c: <SIP/1102-00000000> Playing ‘silence/1.slin’ (language ‘en’)
[May 30 13:57:24] VERBOSE[1593][C-00000000] file.c: <SIP/1102-00000000> Playing ‘cannot-complete-as-dialed.slin’ (language ‘en’)
[May 30 13:57:26] VERBOSE[1593][C-00000000] file.c: <SIP/1102-00000000> Playing ‘check-number-dial-again.slin’ (language ‘en’)
[May 30 13:57:28] VERBOSE[1593][C-00000000] pbx.c: Executing [116@from-internal:5] Wait(“SIP/1102-00000000”, “1”) in new stack
[May 30 13:57:29] VERBOSE[1593][C-00000000] pbx.c: Executing [116@from-internal:6] Congestion(“SIP/1102-00000000”, “20”) in new stack
[May 30 13:57:29] VERBOSE[1593][C-00000000] pbx.c: Spawn extension (from-internal, 116, 6) exited non-zero on ‘SIP/1102-00000000’
[May 30 13:57:29] VERBOSE[1593][C-00000000] pbx.c: Executing [h@from-internal:1] Macro(“SIP/1102-00000000”, “hangupcall”) in new stack
[May 30 13:57:29] VERBOSE[1593][C-00000000] pbx.c: Executing [s@macro-hangupcall:1] GotoIf(“SIP/1102-00000000”, “1?skiprg”) in new stack
[May 30 13:57:29] VERBOSE[1593][C-00000000] pbx_builtins.c: Goto (macro-hangupcall,s,4)
[May 30 13:57:29] VERBOSE[1593][C-00000000] pbx.c: Executing [s@macro-hangupcall:4] GotoIf(“SIP/1102-00000000”, “1?skipblkvm”) in new stack
[May 30 13:57:29] VERBOSE[1593][C-00000000] pbx_builtins.c: Goto (macro-hangupcall,s,7)
[May 30 13:57:29] VERBOSE[1593][C-00000000] pbx.c: Executing [s@macro-hangupcall:7] GotoIf(“SIP/1102-00000000”, “1?theend”) in new stack
[May 30 13:57:29] VERBOSE[1593][C-00000000] pbx_builtins.c: Goto (macro-hangupcall,s,9)
[May 30 13:57:29] VERBOSE[1593][C-00000000] pbx.c: Executing [s@macro-hangupcall:9] Hangup(“SIP/1102-00000000”, “”) in new stack
[May 30 13:57:29] VERBOSE[1593][C-00000000] app_macro.c: Spawn extension (macro-hangupcall, s, 9) exited non-zero on ‘SIP/1102-00000000’ in macro ‘hangupcall’
[May 30 13:57:29] VERBOSE[1593][C-00000000] pbx.c: Spawn extension (from-internal, h, 1) exited non-zero on ‘SIP/1102-00000000’
Apa yang perlu saya setting lagi ya?
Mohon pencerahannya kembali
ah iya… begini saja…

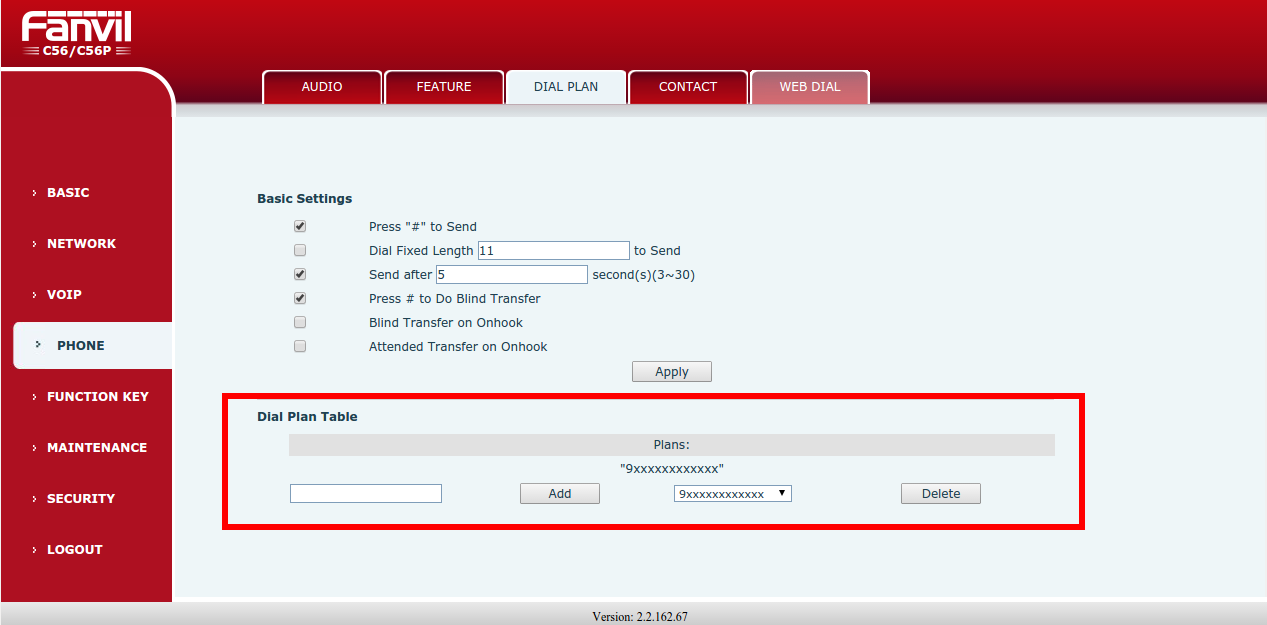

dial plannya dibuat seperti ini :
1XX
XXXXX.
pastikan urutan outbound di nomer satu (ada di sebelah kanan layar dialplan biasanya).
Dari ekstensi Briker tetep dial pake prefix 9 diikuti nomer tujuan. Ndak usah dikasih tanda | biar yang motong PBX Analog nya. Yang 1XX kalo bisa di atas yang XXXXX. supaya dia diperiksa dulu (soalnya saya kadang lupa urutan diperiksa berdasarkan panjang pendek atau urutan dari atas ke bawah).
untuk dial plannya sudah saya buat seperti yang disarankan, tetapi masih belum bisa untuk telepon keluar kantor (PSTN lain/mobile phone)
Yang saya bingung, jika telepon keluar kantor (menggunakan angka 9), tidak ada log yang tercreate pada briker.
kemudian saya coba tes dengan setting dial plan tersebut, kemudian saya coba lakukan telepon keluar kantor tanpa menekan angka 9 terlebih dahulu, telepon ext briker langsung terhubung ke operator kantor.
saya masih cari-cari solusi untuk masalah ini
terima kasih
kalo ndak salah lihat itu ada 3 trunk di briker mas. Boleh liat dial plan trunk lainnya kah?
atau sudah dicoba mematikan kedua trunk lain sehingga yang jalan trunk satu itu aja?
soalnya kalo bisa call ke extensi di PBX analog, berarti sudah bisa nyebrang.
Ini dialplan pada outbound routes yang lainnya :
Mematikan nya dengan cara mendelete kedua outgoing router tersebut?
Mohon advicenya kembali
nah iya… coba yang dua route itu didelete. Sebelum didelete discreenshot dulu saja.
sudah saya delete dan reboot brikernya, tetapi masih tidak belum bisa telepon ke luar kantor.
Berarti ini bukan kendala pada outgoing routesnya?
Halo,
Sekarang kan outbound routesnya yang 2 itu sudah dihapus, nah pas test call, coba perhatikan log asterisk, buka lognya sebelum mulai call, setelah itu lakukan call, paste hasilnya disini yah
Pak Asoka,
Saya sudah coba telepon dengan mencoba telepon ke luar kantor dengan menekan angka 9+no pstn ataupun 9+phonemobile, tetapi pada asterisk hanya ada log seperti ini :
root@ippbx:/home/support# tail -f /var/log/asterisk/full
[Jun 13 13:32:24] VERBOSE[1387] pbx_functions.c: Registered custom function ‘QUEUE_MEMBER_LIST’
[Jun 13 13:32:24] VERBOSE[1387] pbx_functions.c: Registered custom function ‘QUEUE_WAITING_COUNT’
[Jun 13 13:32:24] VERBOSE[1387] pbx_functions.c: Registered custom function ‘QUEUE_MEMBER_PENALTY’
[Jun 13 13:32:24] VERBOSE[1387] loader.c: app_queue.so => (True Call Queueing)
[Jun 13 13:32:24] VERBOSE[1387] loader.c: Loading res_manager_presencestate.so.
[Jun 13 13:32:24] VERBOSE[1387] manager.c: Manager registered action PresenceStateList
[Jun 13 13:32:24] VERBOSE[1387] loader.c: res_manager_presencestate.so => (Manager Presence State Topic Forwarder)
[Jun 13 13:32:24] VERBOSE[1387] config.c: Parsing ‘/etc/asterisk/cli_permissions.conf’: Found
[Jun 13 13:32:24] VERBOSE[1387] config.c: Parsing ‘/etc/asterisk/cli.conf’: Found
[Jun 13 13:32:24] VERBOSE[1387] asterisk.c: Asterisk Ready.
Log dengan menekan angka 9 terlebih dahulu tidak tercreate pada log
Saya masih bingung, ada kurang setting di sisi mananya
Mohon masukannya lagi
Terima kasih
Coba install softphone, misalkan linphone atau xlite, lalu call lagi, perhatikan lognya juga jangan lupa.
Pak Asoka,
Saya menggunakan xlite versi 3 untuk coba telepon
Saya telepon keluar kantor ke no hp saya, sudah bisa pak asoka, dan ini log nya :
[Jun 15 08:40:10] VERBOSE[1564][C-00000006] pbx.c: Executing [h@from-internal:1] Macro(“SIP/1105-0000000b”, “hangupcall”) in new stack
[Jun 15 08:40:10] VERBOSE[1564][C-00000006] pbx.c: Executing [s@macro-hangupcall:1] GotoIf(“SIP/1105-0000000b”, “1?skiprg”) in new stack
[Jun 15 08:40:10] VERBOSE[1564][C-00000006] pbx_builtins.c: Goto (macro-hangupcall,s,4)
[Jun 15 08:40:10] VERBOSE[1564][C-00000006] pbx.c: Executing [s@macro-hangupcall:4] GotoIf(“SIP/1105-0000000b”, “1?skipblkvm”) in new stack
[Jun 15 08:40:10] VERBOSE[1564][C-00000006] pbx_builtins.c: Goto (macro-hangupcall,s,7)
[Jun 15 08:40:10] VERBOSE[1564][C-00000006] pbx.c: Executing [s@macro-hangupcall:7] GotoIf(“SIP/1105-0000000b”, “1?theend”) in new stack
[Jun 15 08:40:10] VERBOSE[1564][C-00000006] pbx_builtins.c: Goto (macro-hangupcall,s,9)
[Jun 15 08:40:10] VERBOSE[1564][C-00000006] pbx.c: Executing [s@macro-hangupcall:9] Hangup(“SIP/1105-0000000b”, “”) in new stack
[Jun 15 08:40:10] VERBOSE[1564][C-00000006] app_macro.c: Spawn extension (macro-hangupcall, s, 9) exited non-zero on ‘SIP/1105-0000000b’ in macro ‘hangupcall’
[Jun 15 08:40:10] VERBOSE[1564][C-00000006] pbx.c: Spawn extension (from-internal, h, 1) exited non-zero on ‘SIP/1105-0000000b’
[Jun 15 08:41:49] VERBOSE[1437][C-00000007] netsock2.c: Using SIP VIDEO TOS bits 136
[Jun 15 08:41:49] VERBOSE[1437][C-00000007] netsock2.c: Using SIP VIDEO CoS mark 6
[Jun 15 08:41:49] VERBOSE[1437][C-00000007] netsock2.c: Using SIP RTP TOS bits 184
[Jun 15 08:41:49] VERBOSE[1437][C-00000007] netsock2.c: Using SIP RTP CoS mark 5
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [9083876955607@from-internal:1] Macro(“SIP/1105-0000000d”, “user-callerid,SKIPTTL,”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:1] NoOp(“SIP/1105-0000000d”, “user-callerid: device 1105”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:2] Set(“SIP/1105-0000000d”, “AMPUSER=1105”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:3] GotoIf(“SIP/1105-0000000d”, “0?report”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:4] ExecIf(“SIP/1105-0000000d”, “1?Set(REALCALLERIDNUM=1105)”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:5] NoOp(“SIP/1105-0000000d”, “REALCALLERIDNUM is 1105”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:6] Set(“SIP/1105-0000000d”, “AMPUSER=1105”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:7] Set(“SIP/1105-0000000d”, “AMPUSERCIDNAME=risa”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:8] GotoIf(“SIP/1105-0000000d”, “0?report”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:9] Set(“SIP/1105-0000000d”, “AMPUSERCID=1105”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:10] Set(“SIP/1105-0000000d”, “CALLERID(all)=“risa” <1105>”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:11] Set(“SIP/1105-0000000d”, “REALCALLERIDNUM=1105”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:12] ExecIf(“SIP/1105-0000000d”, “0?Set(CHANNEL(language)=)”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:13] NoOp(“SIP/1105-0000000d”, “TTL: ARG1: SKIPTTL”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:14] GotoIf(“SIP/1105-0000000d”, “1?continue”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-user-callerid,s,23)
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-user-callerid:23] NoOp(“SIP/1105-0000000d”, “Using CallerID “risa” <1105>”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [9083876955607@from-internal:2] Set(“SIP/1105-0000000d”, “_NODEST=”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [9083876955607@from-internal:3] Macro(“SIP/1105-0000000d”, “record-enable,1105,OUT,”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-record-enable:1] GotoIf(“SIP/1105-0000000d”, “0?2:4”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-record-enable,s,4)
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-record-enable:4] AGI(“SIP/1105-0000000d”, “recordingcheck,20170615-084149,BrikerIPPBX-1497490909.25”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/recordingcheck
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] res_agi.c: recordingcheck,20170615-084149,BrikerIPPBX-1497490909.25: Outbound recording not enabled
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] res_agi.c: <SIP/1105-0000000d>AGI Script recordingcheck completed, returning 0
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-record-enable:5] NoOp(“SIP/1105-0000000d”, “No recording needed”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [9083876955607@from-internal:4] Macro(“SIP/1105-0000000d”, “dialout-trunk,5,9083876955607,”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:1] Set(“SIP/1105-0000000d”, “ENTEREDEXT=”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:2] NoOp(“SIP/1105-0000000d”, “DEBUG: BT = CH = SIP/1105-0000000d”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:3] Set(“SIP/1105-0000000d”, “BT=”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:4] Set(“SIP/1105-0000000d”, “BT=”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:5] NoOp(“SIP/1105-0000000d”, “DEBUG: BT = CID = 1105”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:6] GotoIf(“SIP/1105-0000000d”, “1?authkeylock”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-dialout-trunk,s,9)
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:9] Set(“SIP/1105-0000000d”, “KEYLOCK=”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:10] GotoIf(“SIP/1105-0000000d”, “0?askpin:pinok”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-dialout-trunk,s,13)
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:13] NoOp(“SIP/1105-0000000d”, “OK”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:14] Set(“SIP/1105-0000000d”, “DIAL_TRUNK=5”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:15] Set(“SIP/1105-0000000d”, “ZAP2DAHDI=SIP/pbxtest”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:16] Set(“SIP/1105-0000000d”, “VAR1=SIP/”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:17] Set(“SIP/1105-0000000d”, “VAR2=pbxtest”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:18] ExecIf(“SIP/1105-0000000d”, “0?Set(OUT_5=DAHDI/pbxtest)”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:19] ExecIf(“SIP/1105-0000000d”, “0?Set(OUT_5=DAHDI/pbxtest)”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:20] ExecIf(“SIP/1105-0000000d”, “0?Set(OUT_5=DAHDI/pbxtest)”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:21] ExecIf(“SIP/1105-0000000d”, “0?Authenticate()”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:22] GotoIf(“SIP/1105-0000000d”, “0?disabletrunk,1”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:23] Set(“SIP/1105-0000000d”, “DIAL_NUMBER=9083876955607”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:24] Set(“SIP/1105-0000000d”, “DIAL_TRUNK_OPTIONS=tTWr”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:25] Set(“SIP/1105-0000000d”, “GROUP()=OUT_5”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:26] GotoIf(“SIP/1105-0000000d”, “1?nomax”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-dialout-trunk,s,28)
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:28] GotoIf(“SIP/1105-0000000d”, “0?skipoutcid”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:29] Set(“SIP/1105-0000000d”, “DIAL_TRUNK_OPTIONS=TW”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:30] Macro(“SIP/1105-0000000d”, “outbound-callerid,5”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-outbound-callerid:1] ExecIf(“SIP/1105-0000000d”, “0?Set(CALLERPRES()=)”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-outbound-callerid:2] GotoIf(“SIP/1105-0000000d”, “1?start”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-outbound-callerid,s,4)
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-outbound-callerid:4] NoOp(“SIP/1105-0000000d”, “REALCALLERIDNUM is 1105”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-outbound-callerid:5] GotoIf(“SIP/1105-0000000d”, “1?normcid”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-outbound-callerid,s,10)
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-outbound-callerid:10] Set(“SIP/1105-0000000d”, “USEROUTCID=”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-outbound-callerid:11] Set(“SIP/1105-0000000d”, “EMERGENCYCID=”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-outbound-callerid:12] Set(“SIP/1105-0000000d”, “TRUNKOUTCID=”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-outbound-callerid:13] GotoIf(“SIP/1105-0000000d”, “1?trunkcid”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-outbound-callerid,s,17)
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-outbound-callerid:17] GotoIf(“SIP/1105-0000000d”, “1?usercid”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-outbound-callerid,s,19)
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-outbound-callerid:19] GotoIf(“SIP/1105-0000000d”, “1?report”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-outbound-callerid,s,23)
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-outbound-callerid:23] NoOp(“SIP/1105-0000000d”, “CallerID set to “risa” <1105>”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:31] AGI(“SIP/1105-0000000d”, “fixlocalprefix”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/fixlocalprefix
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] res_agi.c: <SIP/1105-0000000d>AGI Script fixlocalprefix completed, returning 0
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:32] Set(“SIP/1105-0000000d”, “OUTNUM=9083876955607”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:33] Set(“SIP/1105-0000000d”, “REALOUTNUM=9083876955607”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:34] GotoIf(“SIP/1105-0000000d”, “0?askpin1:pinok1”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-dialout-trunk,s,39)
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:39] NoOp(“SIP/1105-0000000d”, “OK”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:40] Set(“SIP/1105-0000000d”, “OUTNUM=9083876955607”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:41] Set(“SIP/1105-0000000d”, “DEVICENUM=1105”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:42] Set(“SIP/1105-0000000d”, “CIDNAME=”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:43] Set(“SIP/1105-0000000d”, “CIDNUM=”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:44] ExecIf(“SIP/1105-0000000d”, “1?Set(CIDNUM=1105)”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:45] Set(“SIP/1105-0000000d”, “CDR(accountcode)=1105”) in new stack
[Jun 15 08:41:49] WARNING[1395] func_cdr.c: Using the CDR function to set ‘accountcode’ is deprecated. Please use the CHANNEL function instead.
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:46] GotoIf(“SIP/1105-0000000d”, “0?ACCOUNTCODECFOK”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:47] ExecIf(“SIP/1105-0000000d”, “0?Set(CDR(accountcode)=1105)”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:48] Goto(“SIP/1105-0000000d”, “ACCOUNTCODECFNOTOK”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-dialout-trunk,s,54)
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:54] Set(“SIP/1105-0000000d”, “custom=SIP/pbxtest”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:55] GotoIf(“SIP/1105-0000000d”, “1?gocall”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-dialout-trunk,s,57)
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:57] Macro(“SIP/1105-0000000d”, “dialout-trunk-predial-hook,”) in new stack
[Jun 15 08:41:49] WARNING[1587][C-00000007] app_macro.c: Context ‘macro-dialout-trunk-predial-hook’ for macro ‘dialout-trunk-predial-hook’ lacks ‘s’ extension, priority 1
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:58] GotoIf(“SIP/1105-0000000d”, “0?bypass,1”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:59] GotoIf(“SIP/1105-0000000d”, “0?customtrunk”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-dialout-trunk:60] Dial(“SIP/1105-0000000d”, “SIP/pbxtest/9083876955607,300,TW”) in new stack
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] netsock2.c: Using SIP RTP TOS bits 184
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] netsock2.c: Using SIP RTP CoS mark 5
[Jun 15 08:41:49] VERBOSE[1587][C-00000007] app_dial.c: Called SIP/pbxtest/9083876955607
[Jun 15 08:41:54] VERBOSE[1587][C-00000007] app_dial.c: SIP/pbxtest-0000000e is ringing
[Jun 15 08:42:03] VERBOSE[1587][C-00000007] app_dial.c: SIP/pbxtest-0000000e answered SIP/1105-0000000d
[Jun 15 08:42:03] VERBOSE[1591][C-00000007] bridge_channel.c: Channel SIP/pbxtest-0000000e joined ‘simple_bridge’ basic-bridge <3988caea-7a52-4289-8fd2-7ac63962c4a7>
[Jun 15 08:42:03] VERBOSE[1587][C-00000007] bridge_channel.c: Channel SIP/1105-0000000d joined ‘simple_bridge’ basic-bridge <3988caea-7a52-4289-8fd2-7ac63962c4a7>
[Jun 15 08:42:31] VERBOSE[1587][C-00000007] bridge_channel.c: Channel SIP/1105-0000000d left ‘simple_bridge’ basic-bridge <3988caea-7a52-4289-8fd2-7ac63962c4a7>
[Jun 15 08:42:31] VERBOSE[1587][C-00000007] app_macro.c: Spawn extension (macro-dialout-trunk, s, 60) exited non-zero on ‘SIP/1105-0000000d’ in macro ‘dialout-trunk’
[Jun 15 08:42:31] VERBOSE[1587][C-00000007] pbx.c: Spawn extension (from-internal, 9083876955607, 4) exited non-zero on ‘SIP/1105-0000000d’
[Jun 15 08:42:31] VERBOSE[1587][C-00000007] pbx.c: Executing [h@from-internal:1] Macro(“SIP/1105-0000000d”, “hangupcall”) in new stack
[Jun 15 08:42:31] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-hangupcall:1] GotoIf(“SIP/1105-0000000d”, “1?skiprg”) in new stack
[Jun 15 08:42:31] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-hangupcall,s,4)
[Jun 15 08:42:31] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-hangupcall:4] GotoIf(“SIP/1105-0000000d”, “1?skipblkvm”) in new stack
[Jun 15 08:42:31] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-hangupcall,s,7)
[Jun 15 08:42:31] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-hangupcall:7] GotoIf(“SIP/1105-0000000d”, “1?theend”) in new stack
[Jun 15 08:42:31] VERBOSE[1587][C-00000007] pbx_builtins.c: Goto (macro-hangupcall,s,9)
[Jun 15 08:42:31] VERBOSE[1587][C-00000007] pbx.c: Executing [s@macro-hangupcall:9] Hangup(“SIP/1105-0000000d”, “”) in new stack
[Jun 15 08:42:31] VERBOSE[1587][C-00000007] app_macro.c: Spawn extension (macro-hangupcall, s, 9) exited non-zero on ‘SIP/1105-0000000d’ in macro ‘hangupcall’
[Jun 15 08:42:31] VERBOSE[1587][C-00000007] pbx.c: Spawn extension (from-internal, h, 1) exited non-zero on ‘SIP/1105-0000000d’
[Jun 15 08:42:31] VERBOSE[1591][C-00000007] bridge_channel.c: Channel SIP/pbxtest-0000000e left ‘simple_bridge’ basic-bridge <3988caea-7a52-4289-8fd2-7ac63962c4a7>
Berarti kendalanya tidak bisa telepon keluar kantor ada pada hardware ipphone yang saya gunakan ya?
mohon infonya kembali
Iya seperti yang saya infokan sebelumnya, itu harus dicari tahu konfigurasi dialplan di IP Phone bapak.
Lalu apakah IP Phone yang bapak miliki ada 1 saja, kalo ada yang lain dicoba juga, mungkin hanya di IP Phone itu saja yang bermasalah yang perlu dikonfigurasi dialplannya.
Pak Asoka,
Terima kasih untuk infonya.
Saya akan cari kembali masalah mengenai hardware ipphone tersebut
Pak Godril,
Terima kasih juga untuk bantuannya
Saya akan terus update mengenai permasalahan ini,
Selamat Sore,
Memang berkah ramadan sepertinya
Untuk telepon keluar dari fanvil C56 sudah bisa dilakukan
pada diaplan di fanvil C56 ditambahkan dialplannya seperti ini :
(sumber : https://www.manualslib.com/manual/710390/Fanvil-C56.html?page=36#manual)
dan berikut ini lognya :
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [9085890067478@from-internal:1] Macro(“SIP/1102-0000000c”, “user-callerid,SKIPTTL,”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:1] NoOp(“SIP/1102-0000000c”, “user-callerid: device 1102”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:2] Set(“SIP/1102-0000000c”, “AMPUSER=1102”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:3] GotoIf(“SIP/1102-0000000c”, “0?report”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:4] ExecIf(“SIP/1102-0000000c”, “1?Set(REALCALLERIDNUM=1102)”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:5] NoOp(“SIP/1102-0000000c”, “REALCALLERIDNUM is 1102”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:6] Set(“SIP/1102-0000000c”, “AMPUSER=1102”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:7] Set(“SIP/1102-0000000c”, “AMPUSERCIDNAME=IT JKT”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:8] GotoIf(“SIP/1102-0000000c”, “0?report”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:9] Set(“SIP/1102-0000000c”, “AMPUSERCID=1102”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:10] Set(“SIP/1102-0000000c”, “CALLERID(all)=“IT JKT” <1102>”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:11] Set(“SIP/1102-0000000c”, “REALCALLERIDNUM=1102”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:12] ExecIf(“SIP/1102-0000000c”, “0?Set(CHANNEL(language)=)”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:13] NoOp(“SIP/1102-0000000c”, “TTL: ARG1: SKIPTTL”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:14] GotoIf(“SIP/1102-0000000c”, “1?continue”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-user-callerid,s,23)
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-user-callerid:23] NoOp(“SIP/1102-0000000c”, “Using CallerID “IT JKT” <1102>”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [9085890067478@from-internal:2] Set(“SIP/1102-0000000c”, “_NODEST=”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [9085890067478@from-internal:3] Macro(“SIP/1102-0000000c”, “record-enable,1102,OUT,”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-record-enable:1] GotoIf(“SIP/1102-0000000c”, “0?2:4”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-record-enable,s,4)
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-record-enable:4] AGI(“SIP/1102-0000000c”, “recordingcheck,20170619-151710,BrikerIPPBX-1497860230.24”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/recordingcheck
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] res_agi.c: recordingcheck,20170619-151710,BrikerIPPBX-1497860230.24: Outbound recording not enabled
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] res_agi.c: <SIP/1102-0000000c>AGI Script recordingcheck completed, returning 0
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-record-enable:5] NoOp(“SIP/1102-0000000c”, “No recording needed”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [9085890067478@from-internal:4] Macro(“SIP/1102-0000000c”, “dialout-trunk,5,9085890067478,”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:1] Set(“SIP/1102-0000000c”, “ENTEREDEXT=”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:2] NoOp(“SIP/1102-0000000c”, “DEBUG: BT = CH = SIP/1102-0000000c”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:3] Set(“SIP/1102-0000000c”, “BT=”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:4] Set(“SIP/1102-0000000c”, “BT=”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:5] NoOp(“SIP/1102-0000000c”, “DEBUG: BT = CID = 1102”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:6] GotoIf(“SIP/1102-0000000c”, “1?authkeylock”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-dialout-trunk,s,9)
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:9] Set(“SIP/1102-0000000c”, “KEYLOCK=”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:10] GotoIf(“SIP/1102-0000000c”, “0?askpin:pinok”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-dialout-trunk,s,13)
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:13] NoOp(“SIP/1102-0000000c”, “OK”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:14] Set(“SIP/1102-0000000c”, “DIAL_TRUNK=5”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:15] Set(“SIP/1102-0000000c”, “ZAP2DAHDI=SIP/pbxtest”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:16] Set(“SIP/1102-0000000c”, “VAR1=SIP/”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:17] Set(“SIP/1102-0000000c”, “VAR2=pbxtest”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:18] ExecIf(“SIP/1102-0000000c”, “0?Set(OUT_5=DAHDI/pbxtest)”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:19] ExecIf(“SIP/1102-0000000c”, “0?Set(OUT_5=DAHDI/pbxtest)”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:20] ExecIf(“SIP/1102-0000000c”, “0?Set(OUT_5=DAHDI/pbxtest)”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:21] ExecIf(“SIP/1102-0000000c”, “0?Authenticate()”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:22] GotoIf(“SIP/1102-0000000c”, “0?disabletrunk,1”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:23] Set(“SIP/1102-0000000c”, “DIAL_NUMBER=9085890067478”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:24] Set(“SIP/1102-0000000c”, “DIAL_TRUNK_OPTIONS=tTWr”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:25] Set(“SIP/1102-0000000c”, “GROUP()=OUT_5”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:26] GotoIf(“SIP/1102-0000000c”, “1?nomax”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-dialout-trunk,s,28)
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:28] GotoIf(“SIP/1102-0000000c”, “0?skipoutcid”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:29] Set(“SIP/1102-0000000c”, “DIAL_TRUNK_OPTIONS=TW”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:30] Macro(“SIP/1102-0000000c”, “outbound-callerid,5”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-outbound-callerid:1] ExecIf(“SIP/1102-0000000c”, “0?Set(CALLERPRES()=)”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-outbound-callerid:2] GotoIf(“SIP/1102-0000000c”, “1?start”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-outbound-callerid,s,4)
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-outbound-callerid:4] NoOp(“SIP/1102-0000000c”, “REALCALLERIDNUM is 1102”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-outbound-callerid:5] GotoIf(“SIP/1102-0000000c”, “1?normcid”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-outbound-callerid,s,10)
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-outbound-callerid:10] Set(“SIP/1102-0000000c”, “USEROUTCID=”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-outbound-callerid:11] Set(“SIP/1102-0000000c”, “EMERGENCYCID=”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-outbound-callerid:12] Set(“SIP/1102-0000000c”, “TRUNKOUTCID=”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-outbound-callerid:13] GotoIf(“SIP/1102-0000000c”, “1?trunkcid”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-outbound-callerid,s,17)
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-outbound-callerid:17] GotoIf(“SIP/1102-0000000c”, “1?usercid”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-outbound-callerid,s,19)
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-outbound-callerid:19] GotoIf(“SIP/1102-0000000c”, “1?report”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-outbound-callerid,s,23)
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-outbound-callerid:23] NoOp(“SIP/1102-0000000c”, “CallerID set to “IT JKT” <1102>”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:31] AGI(“SIP/1102-0000000c”, “fixlocalprefix”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/fixlocalprefix
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] res_agi.c: <SIP/1102-0000000c>AGI Script fixlocalprefix completed, returning 0
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:32] Set(“SIP/1102-0000000c”, “OUTNUM=9085890067478”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:33] Set(“SIP/1102-0000000c”, “REALOUTNUM=9085890067478”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:34] GotoIf(“SIP/1102-0000000c”, “0?askpin1:pinok1”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-dialout-trunk,s,39)
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:39] NoOp(“SIP/1102-0000000c”, “OK”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:40] Set(“SIP/1102-0000000c”, “OUTNUM=9085890067478”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:41] Set(“SIP/1102-0000000c”, “DEVICENUM=1102”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:42] Set(“SIP/1102-0000000c”, “CIDNAME=”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:43] Set(“SIP/1102-0000000c”, “CIDNUM=”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:44] ExecIf(“SIP/1102-0000000c”, “1?Set(CIDNUM=1102)”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:45] Set(“SIP/1102-0000000c”, “CDR(accountcode)=1102”) in new stack
[Jun 19 15:17:10] WARNING[1404] func_cdr.c: Using the CDR function to set ‘accountcode’ is deprecated. Please use the CHANNEL function instead.
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:46] GotoIf(“SIP/1102-0000000c”, “0?ACCOUNTCODECFOK”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:47] ExecIf(“SIP/1102-0000000c”, “0?Set(CDR(accountcode)=1102)”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:48] Goto(“SIP/1102-0000000c”, “ACCOUNTCODECFNOTOK”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-dialout-trunk,s,54)
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:54] Set(“SIP/1102-0000000c”, “custom=SIP/pbxtest”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:55] GotoIf(“SIP/1102-0000000c”, “1?gocall”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-dialout-trunk,s,57)
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:57] Macro(“SIP/1102-0000000c”, “dialout-trunk-predial-hook,”) in new stack
[Jun 19 15:17:10] WARNING[1645][C-00000006] app_macro.c: Context ‘macro-dialout-trunk-predial-hook’ for macro ‘dialout-trunk-predial-hook’ lacks ‘s’ extension, priority 1
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:58] GotoIf(“SIP/1102-0000000c”, “0?bypass,1”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:59] GotoIf(“SIP/1102-0000000c”, “0?customtrunk”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-dialout-trunk:60] Dial(“SIP/1102-0000000c”, “SIP/pbxtest/9085890067478,300,TW”) in new stack
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] netsock2.c: Using SIP RTP TOS bits 184
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] netsock2.c: Using SIP RTP CoS mark 5
[Jun 19 15:17:10] VERBOSE[1645][C-00000006] app_dial.c: Called SIP/pbxtest/9085890067478
[Jun 19 15:17:15] VERBOSE[1645][C-00000006] app_dial.c: SIP/pbxtest-0000000d is ringing
[Jun 19 15:17:23] VERBOSE[1645][C-00000006] app_dial.c: SIP/pbxtest-0000000d answered SIP/1102-0000000c
[Jun 19 15:17:23] VERBOSE[1649][C-00000006] bridge_channel.c: Channel SIP/pbxtest-0000000d joined ‘simple_bridge’ basic-bridge <2ff06e74-1d07-43e0-8bcf-c832e8ccfa99>
[Jun 19 15:17:23] VERBOSE[1645][C-00000006] bridge_channel.c: Channel SIP/1102-0000000c joined ‘simple_bridge’ basic-bridge <2ff06e74-1d07-43e0-8bcf-c832e8ccfa99>
[Jun 19 15:17:39] VERBOSE[1645][C-00000006] bridge_channel.c: Channel SIP/1102-0000000c left ‘simple_bridge’ basic-bridge <2ff06e74-1d07-43e0-8bcf-c832e8ccfa99>
[Jun 19 15:17:39] VERBOSE[1645][C-00000006] app_macro.c: Spawn extension (macro-dialout-trunk, s, 60) exited non-zero on ‘SIP/1102-0000000c’ in macro ‘dialout-trunk’
[Jun 19 15:17:39] VERBOSE[1645][C-00000006] pbx.c: Spawn extension (from-internal, 9085890067478, 4) exited non-zero on ‘SIP/1102-0000000c’
[Jun 19 15:17:39] VERBOSE[1645][C-00000006] pbx.c: Executing [h@from-internal:1] Macro(“SIP/1102-0000000c”, “hangupcall”) in new stack
[Jun 19 15:17:39] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-hangupcall:1] GotoIf(“SIP/1102-0000000c”, “1?skiprg”) in new stack
[Jun 19 15:17:39] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-hangupcall,s,4)
[Jun 19 15:17:39] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-hangupcall:4] GotoIf(“SIP/1102-0000000c”, “1?skipblkvm”) in new stack
[Jun 19 15:17:39] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-hangupcall,s,7)
[Jun 19 15:17:39] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-hangupcall:7] GotoIf(“SIP/1102-0000000c”, “1?theend”) in new stack
[Jun 19 15:17:39] VERBOSE[1645][C-00000006] pbx_builtins.c: Goto (macro-hangupcall,s,9)
[Jun 19 15:17:39] VERBOSE[1645][C-00000006] pbx.c: Executing [s@macro-hangupcall:9] Hangup(“SIP/1102-0000000c”, “”) in new stack
[Jun 19 15:17:39] VERBOSE[1645][C-00000006] app_macro.c: Spawn extension (macro-hangupcall, s, 9) exited non-zero on ‘SIP/1102-0000000c’ in macro ‘hangupcall’
[Jun 19 15:17:39] VERBOSE[1645][C-00000006] pbx.c: Spawn extension (from-internal, h, 1) exited non-zero on ‘SIP/1102-0000000c’
[Jun 19 15:17:39] VERBOSE[1649][C-00000006] bridge_channel.c: Channel SIP/pbxtest-0000000d left ‘simple_bridge’ basic-bridge <2ff06e74-1d07-43e0-8bcf-c832e8ccfa99>
Untuk saat ini telepon keluar dari xlite atapun ipphone Fanvil C56 sudah bisa dilakukan.
Selanjutnya saya akan coba fitur lain dari briker untuk group dll
Terima kasih untuk pencerahannya selama ini
Mantab. Terima kasih sharingnya.
